12.8-18.8kw Low Ambeint Temperature Area (low to -25C) High Efficient Evi Air to Water Heat Pump

Quantity:
  • MG-05KFGRS/380
  • CE, ISO9001, CCC, CB, UL, RoHS, SASO, CSA
  • mango energy
  • Ply Wood
  • 810*691*750
  • China
  • 84189910
12.8-18.8kw Low Ambeint Temperature Area (low to -25C)High Efficient Evi Air to Water Heat Pump
Model MG-03KFGRS MG-03KFGRS/380 MG-05KFGRS MG-10KFGRS MG-20KFGRS
Standard components Cabinet/color Spray coating
Refrigerant R407C
Power supply 220V~240V/50Hz/1pH 380V~415V/50Hz/3pH
Compressor type Copeland EVI compressor
Compressor model * quantity ZW30KSE*1 ZW34KSE*1 ZW61KSE*1 ZW61KSE*2 ZW108KSE*2
Condenser High efficiency shell and tube heat exchanger
Economy unit Plate heat exchanger
Evaporator Blue hydrophilic aliuminium foil, wavy fin and copper tube heat exchanger
Throttle unit Heat expansion valve
A/C contactor
Thermal relay
Controller Muti-function controller
Protection function Tempreature protection, time protection, water flow protection, antifreeze protection, current protection
Low pressure switch 0.05/0.15MPa
High pressure switch 3.0/3.2MPa
Power supply line size 2.5mm2 2.5mm2 4mm2 6mm2 10mm2
Package W*D*H 910*500*1320 910*500*1320 1160*500*1410 1510*820*1320 1940*1120*2180
Specifications Heating capacity 20ºC KW 10.8 11.8 20.6 40.6 74.4
Input power when heating KW 2.81 3.1 5.4 10.7 19.6
Rated current A 12.4 5.9 9 17.6 35.2
COP 3.84 3.81 3.81 3.79 3.80
Hot water capacity L/H 232 254 443 873 1599
Heating capacity -10ºC KW 6.3 7 12.6 24.4 43.2
Input power when heating KW 2.58 2.9 5.1 9.9 17.4
COP 2.44 2.41 2.47 2.46 2.48
Hot water capacity L/H 135 150 271 524 929
Heating capacity -20ºC KW 4.9 5.4 10.3 19.6 31
Input power when heating KW 2.45 2.68 5.05 9.8 15.36
COP 2.00 2.01 2.04 2.00 2.02
Hot water capacity L/H 105 116 221 421 666
Rated outlet water temp ºC 55
Max outlet water temp ºC 60
Water flow M3/H 2415 2638 4606 9078 16636
Level of protection IPX4 IPX4 IPX4 IPX4 IPX4
Electric shock proof grade I I I I I
Noise dB(A) ≤55 ≤55 ≤58 ≤66 ≤75
Net weight Kg 112 112 164 320 556
Gross weight Kg 118 118 174 333 606
Dimension W*D*H 830*490*1160 830*490*1160 1090*480*1260 1450*740*1150 1850*1000*1950
Pipe size mm DN25 DN25 DN25 DN32 DN50
Working mode Heating

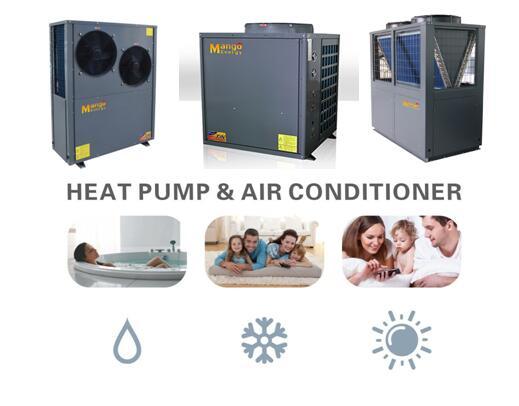

12.8-18.8kw Low Ambeint Temperature Area (low to -25C) High Efficient Evi Air to Water Heat Pump
12.8-18.8kw Low Ambeint Temperature Area (low to -25C) High Efficient Evi Air to Water Heat Pump
12.8-18.8kw Low Ambeint Temperature Area (low to -25C) High Efficient Evi Air to Water Heat Pump

Q1> What does Mango energy company do?
A1: Mango energy is professional manufacturer of all type heat pumps, EVI air to water heat pump, Nomal air source heat pump, water to water heat pump, ground source heat pump. Water chiller heat pump, air to water chiller heat pump. Swimming pool heat pump...

Q2> What is the daily production of Mango energy company?
A2: Mango energy one day produce heat pump water heater around 150~300PCS / day.

Q3> What is Mango energy heat pump certification?

A3: Mango energy have: SGS, CE, CB, IEC60335-2-40, EN14511 certificate from TUV Lab, ISO9001. ISO18001, ISO14001 and CCC certificate. Get Class A+, A as ERP EN14825 test report.

Q4> Where are the Mango energy heat pump export to till now?

A4: Currently the products has been exported to Western Europe, North Europe, South Africa, Middle-East, South American and Australia market.

Q5> What is the marketing cooperation case with Mango energy?

A5: Mango energy all find exclusive agent / distributor / wholesale / OEM

Mango energy is manufacturer, so we do not directly face to end user / retail,

After sign sales contract at this district, we will do not sales to others buyers again,

So agent / distributor care for this district sales & service.

Q6> What mango energy do for their agent / distributor /OEM?

A6: Mango energy offer sales training, heat pump & solar air conditioner product training,

After sales service training, maintenance machine training, big air chiller, or heating

Project design case training, inside parts exchange training and test training.

Q7> How can get training from Mango energy?

A7: If have time, can visit to my factory to training, or invite we engineer team to yours side

Training, or by Video training online.

Q8> What Mango energy offer to their business partner?

A8: Mango enrgy offer 1%~2% free spare parts according to order quantity.

Offer whole this district market exclusive sales right.

Offer rebate as this district agent sales amount within one year.

Offer best competitive price & repair parts.

Offer 24 hours online service.

Q9> where is heat pump using?

A9: Because Air source heat pump save energy around 70%, ( EVI heat pump and central cooling & heating heat pump ) is Widely used in home heating, hotels hot water & heating, restaurants, hospitals, schools, bath center, residential central heating and hot water plants, etc.
