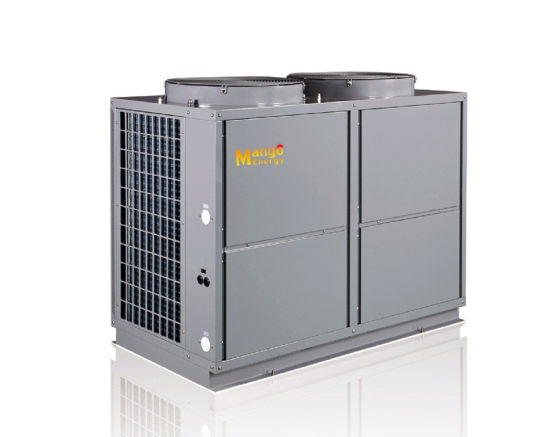

Wifi control observe the operation of the heat pump any time heat pump water heater
Model No. | Unit | MG-030KFXRS | MG-050KFXRS | MG-030KFXRS | MG-050KFXRS | MG-080KFXRS | MG-100KFXRS | MG-120KFXRS | MG-200KFXRS | MG-250KFXRS |
Heating Capacity | KW | 12.1 | 20.8 | 12.1 | 20.8 | 29.8 | 39.8 | 44.3 | 75 | 86.4 |
Power Input | KW | 2.7 | 4.5 | 2.7 | 4.5 | 7.2 | 9.6 | 10.8 | 18 | 21.6 |
Largest Current | A | 5.9 | 5.9 | 5.9 | 5.9 | 9 | 11.2 | 17.6 | 36.1 | 41.4 |
Rated Water Temp. | ºC | 55 |
Highest Water Temp. | ºC | 60 |
Power Supply | | 220V/1P/50/60Hz | 380V50//60Hz |
Anti-electric Shock Type | | I |
Compressor | | Scroll |
Quantity of Compressor | | 1 | 2 | | 2 | 2 | 2 |
Fan Direction | Discharge | Vertical |
Quantity of Fan | | 1 | 2 | | 2 | 2 | 2 |
Refrigerant | | R22 ,R417A |
Ambient temp. | ºC | -12-48 |
Hot Water Supply | L/H | 285 | 525 | 285 | 525 | 710 | 998 | 1250 | 2020 | 2365 |
Circulation of Water Capacity | M3/h | 3 | 5 | 3 | 5 | 8 | 10 | 12 | 20 | 24 |
Pressure from Tap Water | kPa | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 |
Noise | dBA | <=54 | <=56 | <=54 | <=56 | <=60 | <=60 | <=60 | <=62 | <=62 |
Mainframe Weight | kg | 100 | 180 | 100 | 180 | 340 | 360 | 380 | 680 | 760 |
Side fan Dimension(mm) | Length | 810 | 1110 | 810 | 1110 | 1610 | 1610 | 1610 | 2170 | 2170 |
Width | 691 | 490 | 691 | 490 |
Height | 870 | 1260 | 870 | 1260 | 900 | 900 | 900 | 1065 | 1065 |
Top fan TDimension(mm) | Length | 800 | 900 | 800 | 900 |
Width | 800 | 900 | 800 | 900 | 1078 | 1078 | 1078 | 1890 | 1890 |
Height | 925 | 1100 | 925 | 1100 |
