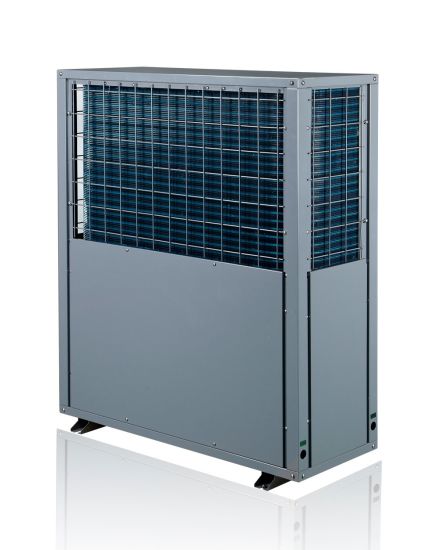

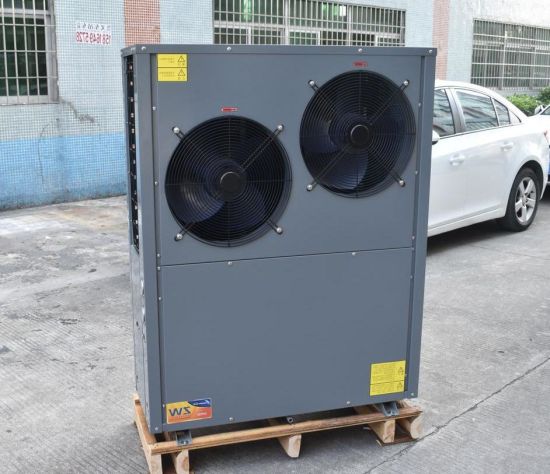

Normal Air to Water Heating System Monobloc Air Source DC Inverter Heat Pump

Quantity:
  • MG-050KFXRS
  • CE, ISO9001, CCC, CB, UL, RoHS, SASO
  • 18kw
  • Mango
  • Woodpacking
  • 810*691*870mm
  • China
  • 8415812000
10KW-87KW Commercial Air Source Heat Pump Water Heater

1.Equiped with famous brand copeland compressor

2.The the heatig temperature could be set,and the outlet temperature would be the temperature you set.

3.With intelligient touch screen,it can adjust the water temperature and set the heating time.

4.With full protection functions including water flow, high/low pressure, phase order, over-current etc.

5.The cop is more than 4.0,high efficiency;

6.Meet a large consumption,stable and reliable hot water output and performance,high energy efficiency ratio,constant water tank temperature to ensure comfortable use.

7.The unit runs more stable, reliable without EHV(exceed high voltage)

Debase efficiently the attenuation of the heat exchange rate,assure hot water capacity.Adopting high efficient tube heat exchanger, waster rate is greatly reduced, long-term and stable operation.

8.Water tank volume seleted freely, more practical

9.Water and electricity system is completely separated, assure using safely

10.Intelligent control

With automatic filling water,water level control,defrost, power-fail memory,charge adjustment system,with booking timed heating,LCD display remote control and clock.

Normal Air to Water Heating System Monobloc Air Source DC Inverter Heat Pump
Model No. Unit MG-030KFXRS MG-050KFXRS MG-080KFXRS MG-100KFXRS MG-120KFXRS MG-200KFXRS MG-250KFXRS
Heating Capacity KW 10.8 18 28.8 38 43.2 72 86.4
Power Input KW 2.7 4.5 7.2 9.6 10.8 18 21.6
Largest Current A 5.9 5.9 9 11.2 17.6 36.1 41.4
Rated Water Temp. ºC 55 55 55 55 55 55 55
Highest Water Temp. ºC 60 60 60 60 60 60 60
Power Supply
220V/1P/50Hz 380V/3P/50Hz
Anti-electric Shock Type







Compressor
Scroll
Compressor brand
Copeland
Quantity of Compressor
1 1 2
2 4 4
Fan Direction Discharge Vertical
Quantity of Fan
1 1 2
2 3 3
Refrigerant
R417A
Ambient temp. ºC -10-45 -10-45 -10-45 -10-45 -10-45 -10-45 -10-45
Hot Water Supply L/H 267 400 620 817 928 1548 1856
Pipe Size Inch 1″ 1″ 1 1/4″
1 1/4″ 2 1/2″ 2 1/2″
Circulation of Water Capacity M3/h 3 5 8 10 12 20 24
Pressure from Tap Water kPa 46 46 46 46 46 46 46
Noise dBA <=54 <=56 <=60 <=60 <=60 <=62 <=62
Mainframe Weight kg 100 180 340 360 380 680 760
Dimension(mm) Length 810 1110 1500 1500 1430 2170 2170
Width 691 490 800 800 780 1065 1065
Height 870 1260 1600 1600 1376 1890 1890
Running conditions: Ambient temperature DB(dry bulb) 20 ºC, WB(wet bulb)15ºC, Inlet water temp:15ºC, Outlet water temp:55ºC.
