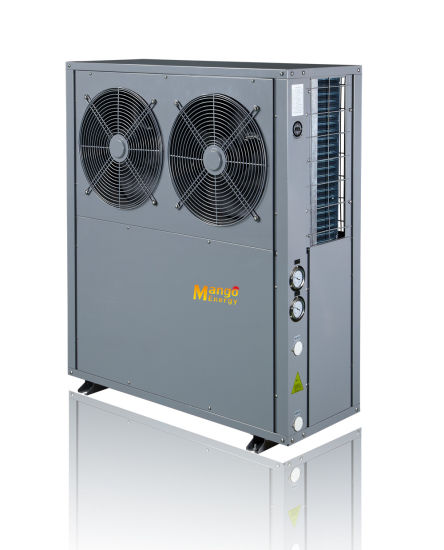

Super Energy Saving Series Central Air Conditioner

Quantity:
  • MG-72KFRS/KFR-52LW
  • Cooling/Heating
  • Gas
  • AC
  • New
  • Mango
  • Plywooed
  • 11.8kw
  • China
  • 8415812000
Super energy saving series Central air conditioner
Central hot water air conditioner
Item No MG-72KFRS/KFR-52LW MG-12KFRS/KFR-70LW MG-20KFRS/KFR-120LW
HP 2HP 3HP 5HP
Condensator Water tank coil 316L Water tank coil316L /High efficiency tank High efficiency tank
Hot water heating capacity KW 7.2 10.8 18.8
Hot water power KW 1.8 2.6 4.4
Rate current A 7 12.4 9
COP 4 4.15 4.27
AC heating capacity KW 5.72 7.8 16.2
Heating power rating KW 1.56 2.35 3.85
Rate current A 7 10.6 9
AC Cooling capacity KW 5.1 7.2 12
Cooling power rating KW 1.63 2.35 3.75
Rate current A 7.4 10.6 9
AC application area 23-33 30-45 45-70
Tank capacity L 150L+100L 150L+100L 150L+100L
Rate outlet water temp ºC 55
Max outlet water temp ºC 60
Voltage V 220V/50Hz
Ambient temperature ºC ~7ºC~43ºC
Refrigerant R22/R410A
Noise dB <55dB(A)
Product size mm 930*280*550 1115*425*710 770*770*1100
N.W KG 80 100 110
G.W KG 88 106 120
