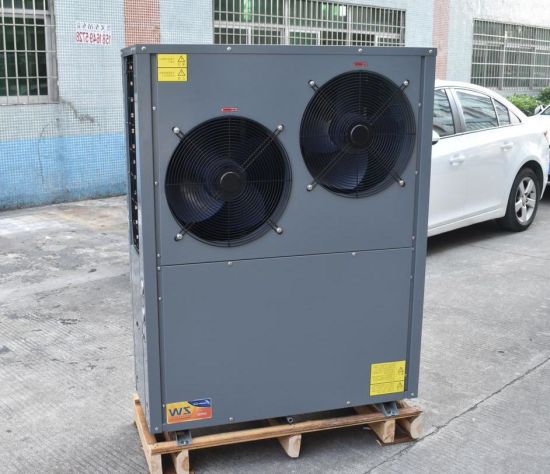

10.5kw/20kw/40kw/54kw/74kw/98kw air source swiming pool heat pump with CE certified, long time Warranty
| tem no | MG-030KFXYC/220V | MG-030KFXYC/380V | MG-050KFXYC | MG-10KFXYC | MG-20KFXYC | MG-25KFXYC |
| | Unit size(W*D*H) | 710*710*925 | 710*710*925 | 810*810*1055 | 1450*740*1150 | 1500*800*1515 | 1850*1000*1950 |
| Compressor | Copeland ZW30KA*1 | Copeland ZW34KA*1 | Copeland ZW61KA*1 | Copeland ZW61KA*2 | Copeland ZR81KC*2 | Copeland ZW108KA*2 |
| Gas | R407/1.8kg*1 | R407/1.8kg*1 | R407/2.8kg*1 | R407/2.8kg*2 | R407/5kg*2 | R407/7kg*2 |
| Voltage | 220V/50HZ | 380V/50HZ |
| condenser | Titanium foam | Titanium foam | Titanium foam | Titanium foam | Titanium foam | Titanium foam |
| φ12.7*18m*1 | φ12.7*18m*1 | φ12.7*30m*1 | φ12.7*30m*2 | φ12.7*42m*2 | 2-φ12.7*30m*2 |
| Evaporator | U*1/1560*750*1/ | U*1/1560*750*1/ | U*1/1870*875*1/ | L*2/1015*950*2/ | V*3/650*1260*2/ | V*3/900*1500*2/ |
| φ9.52 female screw thread/25U tube |
| Four-way value | SHF-11-45D1*1 | SHF-11-45D1*1 | SHF-20A-46*1 | 2*SHF-20A-46*2 | 2*SHF-20A-46*2 | 2*SHF-35A-79*2 |
| electric expansion valve | DPF(Q)2.4c*1 | DPF(Q)2.4c*1 | DPF(Q)3.0c*1 | DPF(Q)3.0c*2 | Emerson 7.5 ton *2 | Emerson 10 tons *2 |
| air blower | 90W*1 | 90W*1 | 250W*1 | 250W*2 | 550W*2 | 800W*2 |
| Fan | φ490*1 | φ490*1 | φ556*1 | φ556*2 | YWF-A4T-550*2 | YWF-A4T-600*2 |
| Controler | | | | | | |
| Low pressure switch | 0.1/0.15MPa | 0.1/0.15MPa | 0.1/0.15MPa | 0.1/0.15MPa | 0.1/0.15MPa | 0.1/0.15MPa |
| High pressure switch | 2.4/3.0MPa | 2.4/3.0MPa | 2.4/3.0MPa | 2.4/3.0MPa | 2.4/3.0MPa | 2.4/3.0MPa |
| Packing | Wooden packing |
| | Rated heating capacity(kW) | 10.5 | 11.8 | 20 | 40 | 54 | 74 |
| Rate input power (kW) | 1.69 | 1.89 | 3.23 | 6.46 | 8.97 | 11.8 |
| COP | 6.21 | 6.24 | 6.19 | 6.19 | 6.02 | 6.27 |
| Constant temperature swimming pool water(ºC) | 28 | 28 | 28 | 28 | 28 | 28 |
| Max output water temp (ºC) | 40 | 40 | 40 | 40 | 40 | 40 |
| Water flow rate(m3/H) | 3 | 3.4 | 5.8 | 11.5 | 15.5 | 21.2 |
| Noise(dB(A)) | ≤55 | ≤55 | ≤58 | ≤66 | ≤68 | ≤70 |
| N.W(kg) | 90 | 90 | 125 | 280 | 372 | 482 |
| G.W(kg) | 96 | 96 | 135 | 295 | 412 | 532 |
| Diameter of pipe (mm) | φ50 | φ63 | φ75 | φ75 |
Less electric swimming pool air to water heat pump R407C ( PVC Titanium heat exchanger)
If any questions, pls feel free to send me inquiry, I will answer you immediately.
