2.96KW household air to watet heat pump water heater (heating mode or monoblock type)
| Model | MG-KS3.5 | MG-KS5.5 | MG-KS-7 | MG-KS-10 | |||
| Specifications | Input power | A20/W55 | kW | 0.93 | 1.34 | 1.84 | 2.45 |
| Heating capacity | kW | 3.8 | 5.5 | 7.5 | 10 | ||
| COP | kW/kW | 4.09 | 4.10 | 4.08 | 4.08 | ||
| Input power | A7/W35 | KW | 0.77 | 1.12 | 1.52 | 2.02 | |
| Heating capacity | KW | 2.96 | 4.29 | 5.85 | 7.80 | ||
| COP | kW/kW | 3.85 | 3.84 | 3.86 | 3.86 | ||
| Input power | A2/W35 | KW | 0.75 | 1.09 | 1.47 | 1.96 | |
| Heating capacity | KW | 2.37 | 3.43 | 4.68 | 6.24 | ||
| COP | kW/kW | 3.17 | 3.16 | 3.18 | 3.18 | ||
| Input power | A-7/W35 | KW | 0.72 | 1.05 | 1.42 | 1.90 | |
| Heating capacity | KW | 1.90 | 2.75 | 3.74 | 4.99 | ||
| COP | kW/kW | 2.62 | 2.61 | 2.63 | 2.63 | ||
| Rated current | A | 4.4 | 6.4 | 8.8 | 11.7 | ||
| Noise | db | 45 | 45 | 48 | 48 | ||
| Net weight | kg | 43 | 48 | 53 | 53 | ||
| Gross weight | kg | 45 | 50 | 55 | 55 | ||
| Max outlet water temp | ℃ | 60 | |||||
| Rated outlet water temp | ℃ | 55 | |||||
| Level of protection | IPX4 | ||||||
| Electric shock proof grade | I | ||||||
| Inlet/outlet water pipe | mm | Internal thread DN20 | |||||

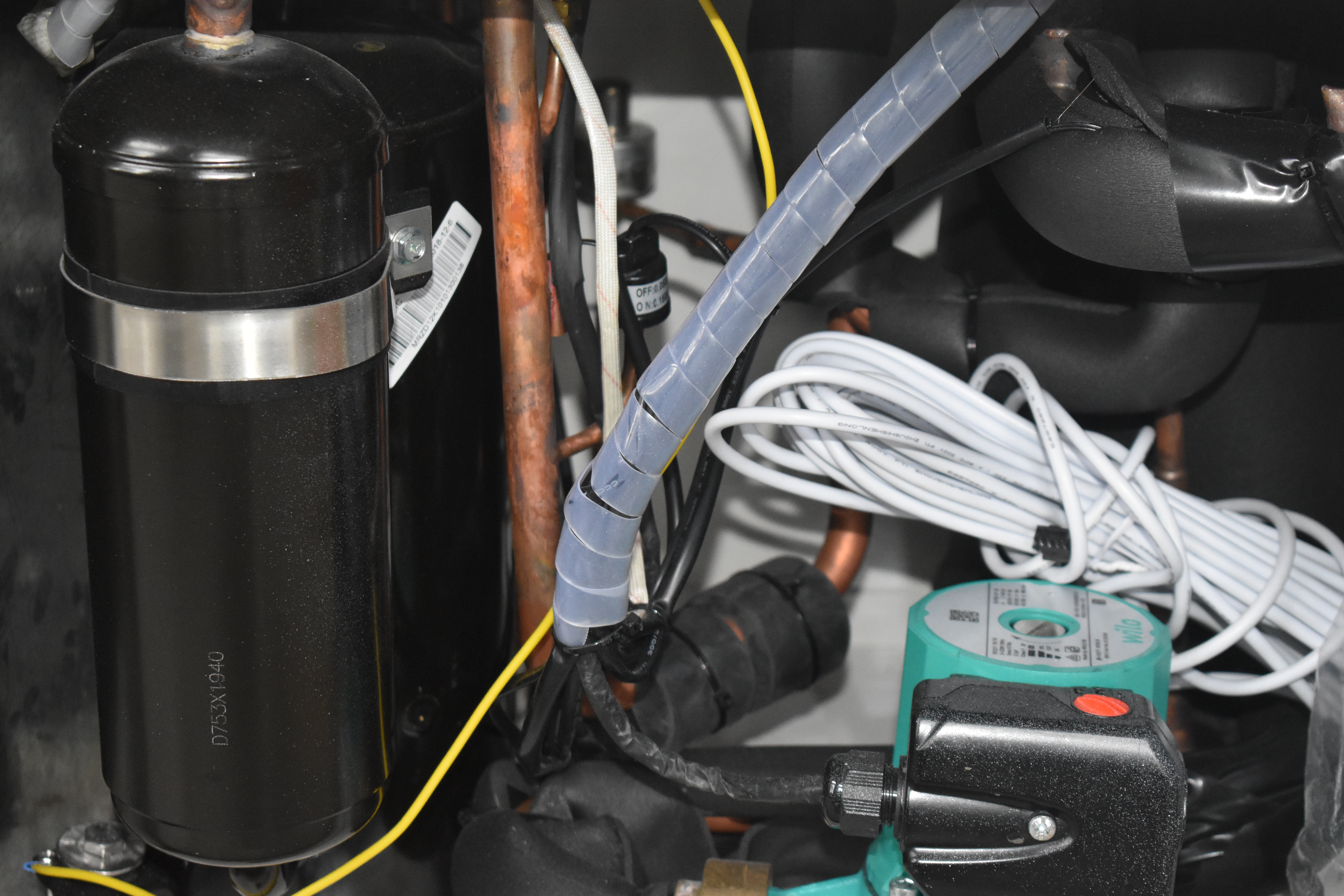

| Standard components | Compressor brand | Mitsubishi | |||||
| Controller | Mango Energy multiple function controller | ||||||
| Evaporator | Hydropilic Aluminium foil and internal thread copper pipe heat exchanger | ||||||
| Condenser | High efficiency shell and tube heat exchanger (copper tube) | ||||||
| Internal water pump | Wilo water pump (Optional ) | ||||||
| High pressure switch | 3.6/4.4MPa | ||||||
| Low pressure switch | 0.15/0.56MPa | ||||||
| Working mode | heating mode | ||||||
| Power supply | 220V～240V/50Hz/1ph | ||||||
| Package | corrugated board case | ||||||
| Cabibet | Galvanized sheet/ Spray coating/ white color | ||||||
| Refrigerant | R410A | ||||||
| Throttle unit | Capillary | Electric expansion valve | |||||
| Fan motor power/ quantity | 30W*1 | 30W*1 | 45W*1 | 50W*1 | |||
| L line | Mm2 | 1 | 1.5 | 2.5 | 2.5 | ||
| Dimension | mm | 934*283*550 | 934*283*550 | 934*283*550 | 1259*419*725 | ||
| Packing dimension | mm | 1045*293*560 | 1045*293*560 | 1045*293*560 | 1269*429*735 | ||
