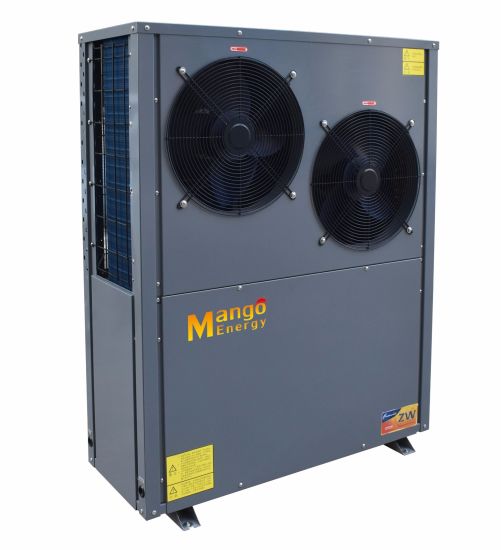

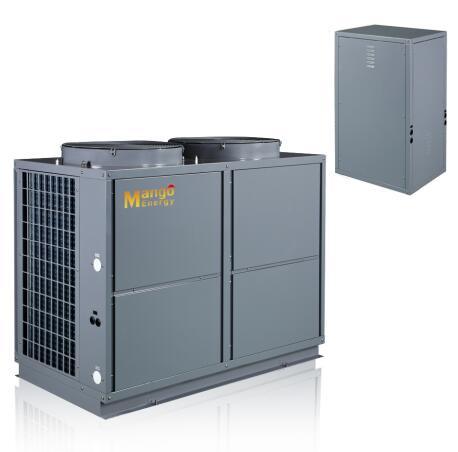

-20 degC working for cold area air to water split EVI DC inverter heat pump R410A
| Model | | | MG-03(FT)/220 | MG-05(FT)/220 | MG-03(FT)/380 | | MG-05(FT)/380 | MG-07(FSplit -30 High Efficiency Evi Split Heat Pump SystemT)/380 |
| Heating capacity | | kW | 10.5 | 18.5 | 11 | | 20 | 28 |
| Heating input power | | kW | 2.59 | 4.48 | 2.70 | | 4.85 | 6.76 |
| Rated current | 20ºC | A | 12.4 | 21.4 | 5.4 | | 9.7 | 13.5 |
| | | | | | | | | |
| COP | | | 4.06 | 4.13 | 4.07 | | 4.12 | 4.14 |
| | | | | | | | | |
| Hot water capacity | | L/H | 226 | 398 | 236 | | 430 | 602 |
| | | | | | | | | |
| Heating capacity | | kW | 8.4 | 14.8 | 8.8 | | 16 | 22.4 |
| Heating input power | 7ºC | kW | 2.47 | 4.31 | 2.57 | | 4.65 | 6.49 |
| COP | | | 3.40 | 3.43 | 3.42 | | 3.44 | 3.45 |
| | | | | | | | | |
| | | | | | | | | |
| Hot water capacity | | L/H | 181 | 318 | 189 | | 344 | 482 |
| | | | | | | | | |
| Heating capacity | | kW | 5.9 | 10.4 | 6.2 | | 11.2 | 15.7 |
| Heating input power | -10ºC | kW | 2.30 | 4.03 | 2.39 | | 4.32 | 6.03 |
| COP | | | 2.56 | 2.57 | 2.58 | | 2.59 | 2.60 |
| | | | | | | | | |
| | | | | | | | | |
| Hot water capacity | | L/H | 126 | 223 | 132 | | 241 | 337 |
| | | | | | | | | |
| Heating capacity | | kW | 4.4 | 7.8 | 4.6 | | 8.4 | 11.8 |
| Heating input power | -20ºC | kW | 2.21 | 3.85 | 2.30 | | 4.12 | 5.74 |
| COP | | | 2.00 | 2.02 | 2.01 | | 2.04 | 2.05 |
| | | | | | | | | |
| | | | | | | | | |
| Hot water capacity | | L/H | 95 | 167 | 99 | | 181 | 253 |
| | | | | | | | | |
| Power supply | | | 220~240V/50Hz/1ph | | 380~415V/50Hz/3ph |
| | | | | | | | | |
| Rated/Max outlet water | ºC | | | 55/60 | | | |
| | | | | | | | | |
| Refrigerant | | | | | R407C | | | |
| | | | | | | | | |
| Copeland Compressor | | | ZW34KSE | ZW52KSE | ZW34KSE | | ZW61KSE | ZW79KSE |
| | | | | | | | |
| Condenser | | | | High efficiency shell and tube heat exchanger | |
| | | | | | | | |
| Economy unit | | | | Plate heat exchanger | |
| | | | | | | | |
| Throttle unit | | | | Thermal expansion valve | |
| | | | | | | | | |
| Connect pipe size of gas | mm | φ12.7/φ19 | φ12.7/φ19 | φ12.7/φ19 | | φ12.7/φ19 | φ12.7/φ19 |
| | | | | | | | | |
| Power supply line size | | | 2.5mm2 | 2.5mm2 | 4mm2 | | 4mm2 | 5mm2 |
| Indoor unit quantity | | PCS | 1 | 1 | 1 | | 1 | 1 |
| | | | | | | | | |
| Outdoor unit quantity | | PCS | 1 | 1 | 1 | | 1 | 1 |
| | | | | | | | | |
| Water flow | | m3/H | 2.3 | 4.0 | 2.4 | | 4.3 | 6.0 |
| Pipe size | | | DN25 | DN25 | DN25 | | DN25 | DN25 |
| | | | | | | | | |
| Noise | | dB(A) | ≤55 | ≤55 | ≤60 | | ≤60 | ≤60 |
| | | | | | | | | |
| Outdoor unit N./G. weight | kg | 85/90 | 130/135 | 85/90 | | 130/135 | 140/145 |
| | | | | | | | | |
| Indoor unit N./G. weight | | 35/40 | 45/50 | 35/40 | | 45/50 | 45/50 |
| | | | | | | | |
| | | | | | | | | |
| Indoor unit dimention | mm | L*W* | 660*385*900 | 660*385*900 | 660*385*900 | | 660*385*900 | 680*400*900 |
| Outdoor unit dimension | mm | H | 830*490*1160 | 1095*420*1420 | 830*490*1160 | | 1095*420*1420 | 1237*480*1410 |
