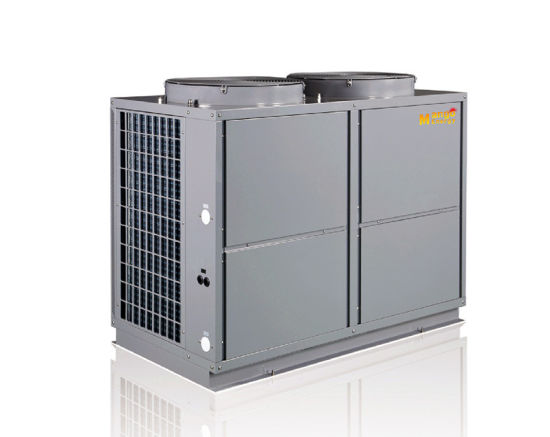

2016 Hot Selling Best Ce Approved High Cop Split Style Evi Air to Water Heat Pump

Quantity:


Inquire Add to Basket

Model NO.: MG-20KFXLR
Certification: CE, ISO9001, CCC, CB, UL, RoHS, SASO, CSA
Heating Capacity: 57.2kw
Trademark: Mango
Transport Package: Plywood
Specification: 1850*1000*1950mm
Origin: China
HS Code: 8415812000

Product Description

EVI low temprature heat pump(heating/hot water )

EVI low temprature heat pump(heating/hot water )
Model			MG-03KFGRS	MG-045KFGRS	MG-03KFGRS/380	MG-05KFGRS	MG-10KFGRS	MG-20KFGRS
Heating capacity	20ºC	kW	10	18.5	11	20	40	78
Heating input power		kW	2.45	4.48	2.7	4.85	9.8	19
Rated current		A	11.7	21.4	5.4	9.7	19.6	38.0
COP			4.08	4.13	4.07	4.12	4.08	4.11
Hot water capacity		L/H	215	398	236	430	860	1677
Heating capacity	7ºC	kW	8	14.8	8.8	16	32	62.4
Heating input power		kW	2.31	4.32	2.56	4.68	9.40	18.20
COP			3.46	3.43	3.44	3.42	3.40	3.43
Hot water capacity		L/H	172	318	189	344	688	1341
Heating capacity	-10ºC	kW	5.6	10.4	6.2	11.2	22.4	43.7
Heating input power		kW	2.15	4.05	2.40	4.45	8.80	17.80
COP			2.60	2.56	2.57	2.52	2.55	2.45
Hot water capacity		L/H	120	223	132	241	482	939
Heating capacity	-20ºC	kW	4.2	7.8	4.6	8.4	16.8	32.8
Heating input power		kW	2.05	3.82	2.30	4.21	8.10	16.20
COP			2.05	2.03	2.01	2.00	2.07	2.02
Hot water capacity		L/H	90	167	99	181	361	704
Power supply			220~240V/50Hz/1ph		380V~415V/50Hz/3ph
Rated/Max outlet water temp		ºC	55~60
Level of protection			IPX4
Electric shock proof grade			I
Water flow		m3/H	2.1	4.0	2.4	4.3	8.6	16.8
Water pressure drop		kPa	≤38	≤40	≤38	≤43	≤50	≤65
Refrigerant			R407C
Compressor			Copeland EVI compressor
Compressor model * qty			ZW34KSE*1	ZW52KSE*1	ZW34KSE*1	ZW61KSE*1	ZW61KSE*2	ZW108KSE*2
Condenser			High efficient tube-in-shell heat exchanger
Evaporator			Blue hydrophilic aliuminium foil,wavy fin and copper tube heat exchanger
Fan Motor			90W*1	90W*2	90W*1	90W*2	550W*2	800W*2
Economy unit			Stainless steel Plate heat exchanger
4-way valve			SHF-11-45D1*1	SHF-20A-46*1	SHF-11-45D1*1	SHF-20A-46*1	SHF-20A-46*2	SHF-35A-79*2
Throttle unit			Thermal expansion valve
A/C contactor and Thermal relay			LG Brand
Controller			Microcomputer central processor (LCD wire controller)
Protection function			temperature protection, time protection, water flow protection, antifreeze protection, current protection
Ambient temperature			(-25ºC -- 46ºC)
High pressure switch			3.0/3.4MPa
Low pressure switch			0.05/0.15MPa
Water pipe size			DN25	DN25	DN25	DN25	DN32	DN50
Noise		dB(A)	≤50	≤55	≤50	≤55	≤65	≤70
Dimension		LWH	8304901160	10954201420	8304901160	10954201420	15008001550	217010651890
Weight		kg	112	164	112	164	320	580
Guarantee for18 months. During the guarantee period , our company will be responsible for problems caused by quality of production or raw material except the damageable spare parts of heat pump caused by incorrect man-made operation.
In stock for next day delivery. If no stock, After receive you deposit within 20 days
Packaging details:
Plywood case
Functions:
1.inquire temperatures of water and refrigerant and ambient air.					2.defrost autumatically in cold weather
3. electric heating support function in cold weather					4. hot water priority.
5. can preset two period of working within 24hours if need.					6. forced defrost function
7. protection of lack of phase/wrong phase, high/low pressure, over current,ect.					8. LCD display panel.
9. preset water temperature freely					10.hot water and house heating function
