2022 Hot Sale Monoblock DC Inverter Air to Water Heat Pump with WIFI 10.5kW Heating Capacity for House Owner

Share to:

2022 Hot Sale Monoblock DC Inverter Air to Water Heat Pump with WIFI 10.5kW Heating Capacity for House Owner

10.5kW heating capacity monoblock dc inverter air to water heat pump with wifi control. Model: MGSDC-030IIC M-Gold.

Availability:

Quantity:


Inquire Add to Basket

Model: MGSDC-030IIC
Brand: Mango
Code: 8418619114
Trademark: Mango Energy
Certifications: CE, ISO9001, CB, UL, RoHS, SASO, CSA
Transport package: Plywood
Origin : China
Specifications: 925X375X745mm
Apply: Villa, Hotel, Garage, Sauna, Apartment Household etc.

Product Description

Product Description

Name:10.5kW Heating Capacity Monoblock DC Inverter Air to Water Heat Pump
Material:Galvanized Sheet
Function:Hot Water/Heating/Cooling
Package:Wooden package

DC Inverter heat pump Advantages:

1.R32 Refrigerant pipe connection for best system stability even in tough weather.

2.E-heater, diverter valve,water pump,and expansion tank can be included.

3.A+++ Energy Rating Level,with CE,TUV test report.

4.Low noise sound power level as low as 52dB(A)

5.Work down to -30 degree C.

6. WIFI solution available,Carel controller.

7.Function: Heating +Cooling+ Hot water.

Parameter

Model	MGSDC-030IC
Power supply（V/Ph/Hz)	220V/1ph/50HZ 380V/3ph/50HZ
Rate heating capacity(kW) (A20/W45）	11
COP	4.21
Rate heating capacity(kW) (A7/W45）	9.25
COP	3.36
Rate heating capacity(kW) (A-12/W41）	5.8
COP	2.35
Cooling capacity(KW) （A35/W7）	8.2
EER	3.06
Water flow（m3／h）	1.1
Outlet water temp（℃）	55-60℃
Work Ambient temperature（℃）	-25℃-43℃

Key parts

1) More compact with slim body;

2) Much lighter for transportation & stallation;
3) Dual rotary, more stable operating & lower operate noise, more ECO;
4) Permanent magnet, no power driving, rapidly ware & tear decreasing, higher efficient.
5) R32, R410refrigerants are capable, green enough for the world.

Features

Carel smart controller

1.Mango dc inverter heat pump with intelligent CAREL controller with RS485 is adopted to realize the linkage control between the heat pump unit and the terminal application end.
2.With the Cascade function, multiple heat pumps can be controlled at once for greater all day operating efficiency.
3.With WIFI APP enables users to operate their units through a smart phone wherever and whenever they are.

A.Top SCOP

Panasonic/Toshiba/Sanyo Inverter Rotary compressor and ECO R32/R410 refrigerant for max heat capacity and less
refrigerant, large volume of latent heat from the air via evaporator in coldest season.
B.Ultra frequency conversion technology
Based on the principle of proportional relationship between motor speed and input frequency of working power supply: n = 60f(1-s)/p and changing motor speed by changing working power frequency of the motor, it adopts AC-DC-AC power conversion technology, relying on our powerful control system with PWM generation ability, integrate V/F, vector control (VC) and direct torque control (DTC) to achieve control method of variable frequency PID calculus, mainly drive variable frequency by way of PWM synthesis drive, fully integrate power, electronics, microcomputer control and other technologies.
C.Advanced Carel Operate System, ultra intelligent
Especially superior heat dissipation circuit board design, longer service, over 3 time of other brand's, simple click and fullyplay the characteristics of DC inverter frequency conversion system to achieve overlocking performance.
D.Multi-speed mute fan motor

ROHS fan blades, ultra-low noise, durable & reliable, constant max air flow to satisfy heat supply.
E.Soft-start and soft-shutdown
Protecting both electrical system and all key parts, such a EEV, SANHUA 4-way valve, LG AC contactor & other World famous brand components ensure heat pump device 2-3 time longer service by

1) making output torque of the motor meeting the requirements of mechanical system for starting torque, ensuring smooth acceleration & smooth transition, and avoiding destructive torque impact;
2) achieving both starting current meeting the requirements of motor's bearing capacity, and the insulation damage or burnout caused when it starts.

3) reducing both voltage sag range and the content of high-order harmonics etc.
F.High-tech shock-absorption all copper construction piping
High-accurate completely automatic silver welding, easy maintenance.
G.High-density protective jacket for minimum heat lost
Aviation class insulation foam with outstanding sound absorption.
H.Classic European outlook forming
Fashion taste, never out of time.
I.Portable compact design
Saving room for installation & operation.
J.Fast heating and cooling speed

Before the indoor temperature reaches the set value, the Panasonic rotary compressor delivers high levels of efficiency, enabling the unit to operate at high frequency so that it can heat water or provide house heating/cooling at a faster speed.

Installation reference

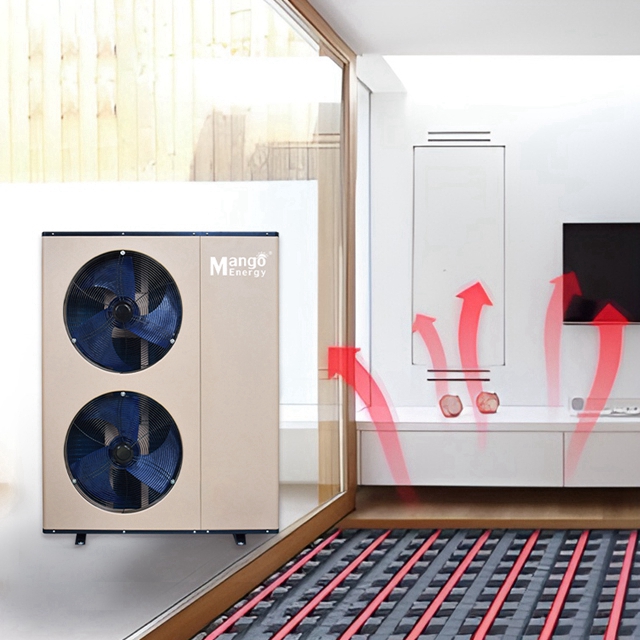

For floor heating

For fan coil

For traditional or new radiators space heating

Mangos' factory

Mango Energy Certificate

Our quality management system was certified in conformity with ISO9001 Standard, heat pumps with CE, TUV, ErP, certificated.

And also with customized OEM/ODM services for distributors all over the world.Now Mango brand heat pump has been exported to more than 100 countries, even well installed.
