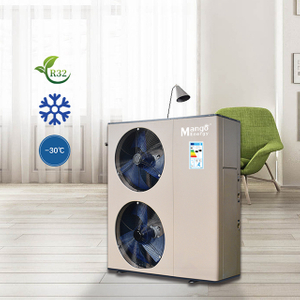

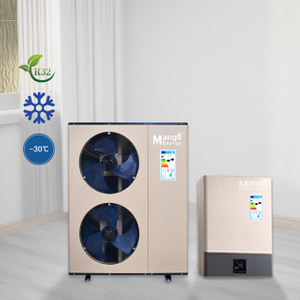

4.9-25kW Split Air Source Heat Pump WIFI with DC Inverter R32 OEM for Heating Cooling Hot Water

DC inverter air source heat pump provides house heating, cooling and hot water. It needs less power consumption and has stable performance.
Availability:
Quantity:
  • MGSDC-060IIC
  • Mango
  • 8418619104
  • Mango Energy
  • CE, ISO9001, CB, UL, RoHS, SASO, CSA
  • Plywood
  • China
  • Indoor Unit: 480*305*645mm Outdoor Unit: 1050*400*1350mm
  • Villa, Hotel, Garage, Sauna, Apartment Household etc.
Product Description
Name: Split R32 DC Inverter Air Source Heat Pump with WIFI Control
Material: Galvanized Sheet
Function: Heating/Cooling/Hot Water
Package:Wooden package


DC Inverter heat pump Advantages:
1.R32 Refrigerant pipe connection for best system stability even in tough weather.
2.E-heater, diverter valve,water pump,and expansion tank can be included.
3.A+++ Energy Rating Level,with CE,TUV test report.
4.Low noise sound power level as low as 52dB(A)
5.Work down to -30 degree C
6. WIFI solution available,Carel controller.
7.Function: Heating +Cooling+ Hot water


Parameter

Model MGSDC-030IIC MGSDC-050IIC MGSDC-060IIC
Power supply Indoor unit V/Hz/Ph 220-240/50/1, 380-415/50/3
Outdoor unit V/Hz/Ph 220-240/50/1 220/380
+7°C/35°C
Floor heating
Heating capacity kW/h 9 14 16
Power input kW 2 3.04 3.5
COP - 4.5 4.6 4.56
+2°C/35°C
Floor heating
Heating capacity kW/h 8.5 12.5 14.3
Power input kW 2.18 3.13 3.7
COP - 3.9 4.0 3.92
-7°C/35°C
Floor heating
Heating capacity kW/h 7.3 12 13.2
Power input kW 2.47 3.93 4.47
COP - 2.96 3.05 2.95
+7°C/45°C
Radiators
Heating capacity kW/h 9 14 16
Power input kW 2.54 3.87 4.71
COP - 3.54 3.62 3.4
-7°C/45°C
Radiators
Heating capacity kW/h 7 11.8 12.7
Power input kW 2.92 4.9 5.29
COP - 2.4 2.41 2.4
+7°C/55°C
Hot water
Heating capacity kW/h 7.8 13.2 15.1
Power input kW 2.48 4.24 4.87
COP - 3.15 3.11 3.1
-12°C/40°C
Floor heating
Heating capacity kW/h 6 10.5 11.5
Power input kW 2.6 4.5 5.1
COP - 2.3 2.36 2.26
+35°C/7°C
Fan coil
Cooling capacity kW/h 7 11 13
Power input kW 2.6 3.95 4.81
EER - 2.7 2.8 2.75
Energy efficiency class Floor heating - A+++ A+++ A+++
DHW mode - A++ A++ A++
Heating operation range Ambient °C -30~25
Water side °C 15~60
Cooling operation range Ambient °C 10~43
Water side °C 7~35
Domestic hot water operation range Ambient °C -30~35
Water side °C 15~60
Rated water flow rate m³/h ≥1.55 ≥2.4 ≥2.75
Rated pressure drop kPa 30 45 45
Max. working pressure Refrigerant Bar 44 44 44
Water Bar 7 7 7
Controller - Micro processor based digital wire controller with LCD display
External cabinet - Galvanized steel with powder coating
Compressor Type - Panasonic
Qty. Nos. 1 1 1
Refrigerant - R32
Water heat exchanger - SUS 316 Brazed plate heat exchanger
Electric heater(Optional) kW 2/3KW
Water pump(Optional) - DC type, Wilo/Shinhoo/Shimge
Expansion tank(Optional) L 2 2 / 5
Water connection Inlet&Outlet inch 1" 1" 1"
Noise level Indoor Unit dB(A) 36 36 36
Outdoor Unit dB(A) 52 57 57
Net dimension (L*W*H) Indoor Unit mm 480*305*645 480*305*645 480*305*645
Outdoor Unit mm 925*375*770 1050*400*1350 1050*400*1350
Packing Indoor Unit mm 520*365*700 520*365*700 520*365*700
Outdoor Unit mm 1005*435*890 1130*470*1450 1130*470*1450
Net weight Indoor Unit kg 38 45 48
Outdoor Unit kg 76 120 140
Features
A.Top SCOP
Panasonic/Toshiba/Sanyo Inverter Rotary compressor and ECO R32/R410 refrigerant for max heat capacity and less
refrigerant, large volume of latent heat from the air via evaporator in coldest season.
B.Ultra frequency conversion technology
Based on the principle of proportional relationship between motor speed and input frequency of working power supply: n = 60f(1-s)/p and changing motor speed by changing working power frequency of the motor, it adopts AC-DC-AC power conversion technology, relying on our powerful control system with PWM generation ability, integrate V/F, vector control (VC) and direct torque control (DTC) to achieve control method of variable frequency PID calculus, mainly drive variable frequency by way of PWM synthesis drive, fully integrate power, electronics, microcomputer control and other technologies.
C.Advanced Carel Operate System, ultra intelligent
Especially superior heat dissipation circuit board design, longer service, over 3 time of other brand's, simple click and fully
play the characteristics of DC inverter frequency conversion system to achieve overlocking performance.
D.Multi-speed mute fan motor
ROHS fan blades, ultra-low noise, durable & reliable, constant max air flow to satisfy heat supply.
E.Soft-start and soft-shutdown
Protecting both electrical system and all key parts, such a EEV, SANHUA 4-way valve, LG AC contactor & other World famous brand components ensure heat pump device 2-3 time longer service by
1) making output torque of the motor meeting the requirements of mechanical system for starting torque, ensuring smooth acceleration & smooth transition, and avoiding destructive torque impact;
2) achieving both starting current meeting the requirements of motor's bearing capacity, and the insulation damage or burnout caused when it starts.
3) reducing both voltage sag range and the content of high-order harmonics etc.
F.High-tech shock-absorption all copper construction piping
High-accurate completely automatic silver welding, easy maintenance.
G.High-density protective jacket for minimum heat lost
Aviation class insulation foam with outstanding sound absorption.
H.Classic European outlook forming
Fashion taste, never out of time.
I.Portable compact design
Saving room for installation & operation.
J.Fast heating and cooling speed
Before the indoor temperature reaches the set value, the Panasonic rotary compressor delivers high levels of efficiency, enabling the unit to operate at high frequency so that it can heat water or provide house heating/cooling at a faster speed.
Smart controller
1.Mango dc inverter heat pump with intelligent  controller with RS485 is adopted to realize the linkage control between the heat pump unit and the terminal application end.
2.With the Cascade function, multiple heat pumps can be controlled at once for greater all day operating efficiency.
3.With WIFI APP enables users to operate their units through a smart phone wherever and whenever they are.


Indoor inner view

Installation reference
Mangos' factory
Mango Energy Certificate
Our quality management system was certified in conformity with ISO9001 Standard, heat pumps with CE, TUV, ErP, certificated. And also with customized OEM/ODM services for distributors all over the world.Now Mango brand heat pump has been exported to more than 100 countries, even well installed.
FAQ

Q1> What does mango energy company do ?
A1: Mango energy is professional manufacturer of ON/OFF heat pump , DC inverter heat pump, air source heat pump,water to water heat pump , swimming pool heat pump,high temperature heat pump so on all kind of heat pump.

Q2> What is the daily production of Mango energy company ?
A2: Mango energy one day produce heat pump water heater around 150~255 PCS / day.


Q3> What Mango energy do for their agent / distributor /OEM ?
A3 : Mango energy offer sales training , heat pump & solar air conditioner product training,
After sales service training , maintenance machine training , big air chiller ,or heating
Project design case training , inside parts exchange training and test training.

Q4> What Mango energy offer to their business partner ?
A4:  Mango energy offer 1%~2% free spare parts according to order quantity .
      Offer whole this district market exclusive sales right .
      Offer rebate as this district agent sales amount within one year .
      Offer best competitive price & repair parts .
      Offer 24 hours online service .


Q5> where is Mango energy heat pump using ?
A5: Because Air source heat pump save energy around 70% , ( EVI heat pump and central cooling & heating heat pump ) is Widely used in home heating, hotels hot water & heating , restaurants, hospitals,schools,bath center, residential central heating and hot water plants, etc.
