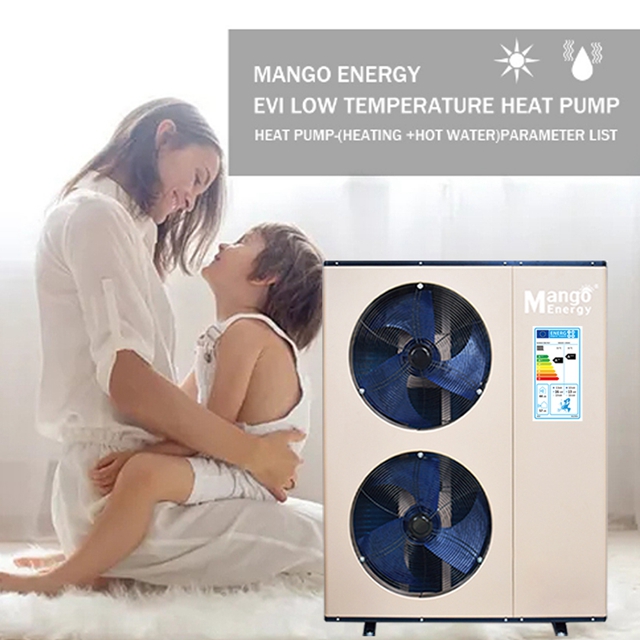

Efficient Energy Mango Heat Pump Erp A+++ Inverter Heatpump 9 Kw to 25 Kw for Heating Pass The Cold Winter R32

Efficient Energy Mango Heat Pump Erp A+++ Inverter Heatpump 9 Kw to 25 Kw for Heating Pass The Cold Winter R32 offered by China manufacturer Heat pump,air to water,water to water heat pump-Guangzhou Mango Energy Technology Co.,Ltd. Buy Efficient Energy Mango Heat Pump Erp A+++ Inverter Heatpump 9 Kw to 25 Kw for Heating Pass The Cold Winter R32 directly with low price and high quality.
Color:
Availability:
Quantity:
  • MGSDC-060IC
  • Mango
  • 8418611085
  • Mango Energy
  • ERP A+++,CE, ISO9001, CCC, CB, UL, RoHS, SASO, CSA
  • Ply wood
  • China
  • 1130X460X1460(MM, Pakage)
  • Household Bathroom Apartment Hotel vila ect. Heating Hot Water and Cooling

Mango Energy science and technology is the power for development ,Quality is the driving force survival.

tukaofeng

Name: R32 EVI Full DC inverter Heating&Cooling &DHW Function
Function: Household or Commercial Heating Cooling and Hot Water
Certification: Erp A+++
Refrigerant: R32 OR R410A
Power Supply: 220-240V~/50Hz/1ph, 380-415V/50Hz/3ph
Max Heating Capacity: 9 kw to 25 kw

Erp A+++  Label(With A+++ (European) EU Energy Efficiency Label )

BAOGAO3

Parameter

Model

MGSDC-030IIC
MGSDC-050IIC
MGSDC-060IIC
MGSDC-080IIC
Power Supply
V/Ph/Hz
220-240V~/50Hz/1ph, 380-415V/50Hz/3ph
Refrigerant Type

R32
[Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 30°C/35°C
Max Heating Capacity
kW
2.32-9.65
3.53-15.76
4.81-18.85
6.36-25.14
Power Input
kW
0.38-2.10
0.58-3.49
0.81-4.31
1.08-5.81
COP

6.06-4.59
6.01-4.51
5.89-4.37
5.87-4.33
[Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 50°C/55°C
Max Heating Capacity
kW
1.81-7.83
2.38-10.86
2.82-14.12
3.41-17.69
Power Input
kW
0.43-3.05
0.58-4.31
0.64-5.34
0.89-7.04
COP

4.15-2.56
4.11-2.52
4.37-2.64
4.32-2.51
[Space Cooling] Ambient Temp. (DB/WB): 35°C / -, Water Temp. (Inlet/Outlet): 12°C/7°C.
Max Cooling Capacity
kW
1.43-7.80
2.06-11.40
2.63-14.50
3.31-20.52
Power Input
kW
0.32-2.92
0.46-4.3
0.59-5.53
0.76-7.86
COP

4.45-2.68
4.43-2.65
4.41-2.62
4.32-2.61
[Hot Water] Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. from 15°C to 55°C.
Max Heating Capacity
kW
10.5
16
19.5
24.8
Power Input
kW
2.18
3.36
4.04
5.23
COP

4.82
4.76
4.83
4.74
General Info
ErP Level (35°C)

A+++
ErP Level (55°C)

A++
Max. Power Input
kW
3.3+3/3.5+3
6+3/6.5+3
6+3/6.5+3
7.7+3/8.0+3
Max. Running Current
A
15+13.6/15.9x3+3
9.1+13.6/9.85x3+13.6
9.1+13.6/9.85x3+13.6
35+13.6/12.12x3+13.6
Compressor Brand

Panasonic
Fan Motor Type

DC motor
Water Side Heat Exchanger

SUS 316 Brazed plate heat exchanger

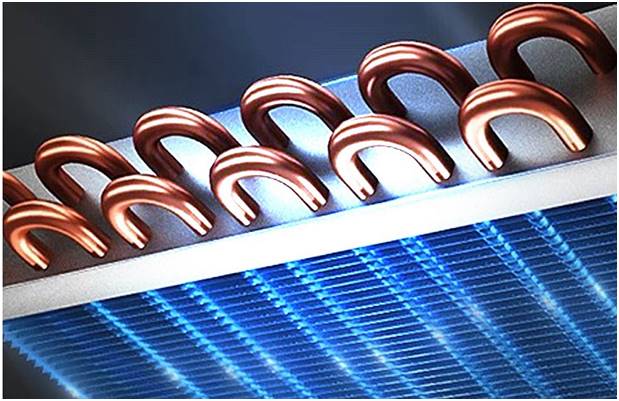

Air Side Heat Exchanger

Finned Heat Exhanger
Display

Micro processor based digital wire controller with LCD display
Wi-Fi Function

Yes
Rated Water Flow
m³/h
≥1.6
≥2.1
≥2.7
≥3.4
Water Pressure Drop
kPa
30
38
38
45
Water Pipe Connection
inch
1"
1"
1"
1-1/4"
Sound Pressure Level at 1m
dB(A)
43~54
43~55
44~55
45~58
Operation Range
°C
-30~43
Max. Outlet Water Temp.
°C
55~60
Water Proof Class

IPX4
Electricity Shock Proof

I
G/W
kg
107
153
153
192
Net Dimensions (L×W×H)
mm
925X375X745
1050X400X1350
1050X400X1350
1175X400X1482
Package Dimensions (L×W×H)
mm
980X410X885
1105X445X1455
1105X445X1455
1200X490X1565
Key parts

Installation

Five Working Functions:

Mode 1:Central Hot Water: Constant Temperature, Sufficient Water Volume, 24-hour Instant Supply
Mode 2:Central Cooling: Water Cooled Air Conditioning, Soft Air Supply, Comfortable for Human Body.
Mode 3: Whole House Heating: Water Cycled Floor Heating,Well-distributed Heat Dissipation, Healthy & Energy Saving.
Mode 4: HotWater + House Cooling: Meet the Requirements of Both Central Hot Water and Air Conditioning.
Mode 5: Hot Water + House Heating: Meet the Requirements of Both Central Hot Water and Room Heating.
Smart WIFl control
By downloading our APP in your mobile phone, it is possible for you to conveniently control a DC inverter heat pump from Mango at any time anywhere.Just imagine that you turn on your heat pump and set it to a comfortable temperature before you leave office,then you will enjoy the pleasant environment as soon as you get home,lt is fantastic,isn't it?
Good reviews and installation cases
Company advantage
Packing&Shipping
