European Standard Mango Energy R32 Split Air Source Heat Pump Full DC Inverter -30 degree Operation

Share to:

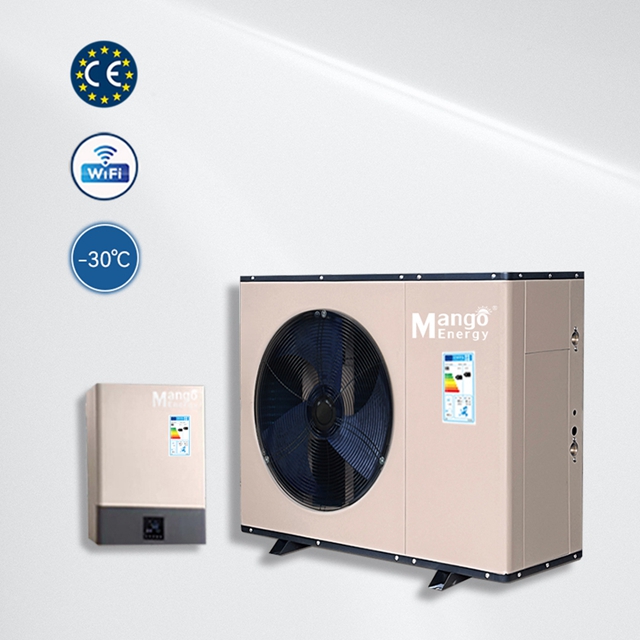

European Standard Mango Energy R32 Split Air Source Heat Pump Full DC Inverter -30 degree Operation

As a specialized heat pump manufacturer located in Guangzhou, China, Mango Energy released the new series of R32 full dc inverter air source heat pump -30 degree EVI. Controlled with WIFI. 9kw heating capacity. Panasonic inverter compressor. Max 60 degree outlet water temperature. MGSDC-030IIC. M-Gold coating.

Availability:

Quantity:


Inquire Add to Basket

Model: MGSDC-030IIC
Brand: Mango
Code: 8418619160
Trademark: Mango Energy
Certifications: CE, ISO9001, CB, UL, RoHS, SASO, CSA
Transport package: Plywood
Origin : China
Specifications: Indoor Unit:480*305*645mm Outdoor Unit:925*375*770mm
Apply: Villa, Hotel, Garage, Sauna, Apartment Household etc.

Product Description

Product Description

Name	Mango Energy Split 3HP DC Inverter Air Source Heat Pump
Function	Heating/Cooling/Hot Water
ERP	A+++
Material	Galvanized sheet
Package	Wooden

DC Inverter heat pump Advantages:


R32 Refrigerant pipe connection insures the system stability even in tough weather.

E-heater, diverter valve,water pump,and expansion tank can be included.
CE,TUV test report, ERP A+++.

WIFI Control Available.

Work down to -30 degree C.

 Parameter

Model	MGSDC-030IIC
Power Supply	Indoor Unit	V/Hz/Ph	220-240/50/1, 380-415/50/3
Power Supply	Outdoor Unit	V/Hz/Ph	220-240/50/1
+7°C/35°CFloor heating	Heating capacity	kW	9
	Power input	kW	2
	COP		4.5
+2°C/35°C Floor heating	Heating capacity	kW	8.5
	Power input	kW	2.18
	COP		3.9
-7°C/35°C Floor heating	Heating capacity	kW	7.3
	Power input	kW	2.47
	COP		2.96
+7°C/45°C Radiators	Heating capacity	kW	9
	Power input	kW	2.54
	COP		3.54
-7°C/45°C Radiators	Heating capacity	kW	7
	Power input	kW	2.92
	COP		2.4
+7°C/55°C Hot water	Heating capacity	kW	7.8
	Power input	kW	2.48
	COP		3.15
-12°C/40°C Floor heating	Heating capacity	kW	6
	Power input	kW	2.6
	COP		2.3
+35°C/7°C Fan coil	Cooling Capacity	kW	7
	Power Input	kW	2.6
	COP		2.7
Net dimension (LWH)	Indoor Unit	mm	480305645
Net dimension (LWH)	Outdoor Unit	mm	925375770

Features

A.Top SCOP  Inverter Rotary compressor and ECO R32 refrigerant for max heating capacity and less refrigerant necessary, large amount of latent heat from the air via evaporator in even worst weather.
 B.Ultra frequency conversion technology
Based on the principle of proportional relationship between motor speed and input frequency of working power supply: n =
60f(1-s)/p and changing motor speed by changing working power frequency of the motor, it adopts AC-DC-AC power conversion technology, relying on our powerful control system with PWM generation ability, integrate V/F, vector control (VC) and direct torque control (DTC) to achieve control method of variable frequency PID calculus, mainly drive variable frequency by way of PWM synthesis drive, fully integrate power, electronics, microcomputer control and other technologies.
 C.Advanced Carel Operate System, ultra intelligent
 Especially superb heat dissipation circuit board design, longer service, over 3 times of other brands', simple click and fully achieve the excellence of DC inverter conversion system for outstanding performance.
 D.Multi-speed mute fan motor
ROHS fan blades, ultra-low noise, durable & reliable, constant max air flow to satisfy heat supply.
 E.Soft-start and soft-shutdown
 Protecting both electrical system and other key parts, such a EEV, SANHUA 4-way valve, LG AC contactor & other World famous brand components to ensure the heat pump device 2-3 times longer service by
  1) making output torque of the motor meet the requirements of mechanical system for starting torque, guaranteeing smooth acceleration & transition, and avoiding destructive torque impact;
 2) modulating starting current to fit the motor's bearing capacity, and avoid the insulation damage or burnout caused when it starts.
 3) reducing both voltage sag range and the content of high-order harmonics etc.
 F.High-tech shock-absorption all copper construction piping
High-accurate completely automatic silver welding, easy maintenance.
 G.High-density protective jacket for minimum heat lost
Aviation class insulation foam with outstanding sound absorption.
 H.Classic European outlook forming
Fashion taste, never out of time.
 I.Portable compact design
Saving room for installation & operation.
 J.Fast heating and cooling speed
 Before the indoor temperature reaches the set value, the Panasonic rotary compressor operates at high power, enabling the unit to work at high frequency so that it can heat water or provide house heating/cooling at a faster speed.

Adopt RS485 intelligent carel controller, connect WiFi and control it anytime, anywhere.

 Why choose us? --Mango Energy Creates a Warm Home for You!


Key Parts

Company profile

Mango Energy has gone through a lot with us.

Customer Feedback

FAQ

1: Are you a manufacturer?
Of course, Mango is professional heat pump manufacturer since 2019, with experienced and improved R&D, production, sales and service supplying.
2: Do you accept OEM & ODM?
Yes. We can produce standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.

3: What support do you offer to clients?
We can provide product certification requirements for local markets; provide catalogs, technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.
4: Will you provide technical promotion support?
Sure, we can provide corresponding pictures and videos to you.


 5: How is your price?
We have our own factory not the trading company. There is no middleman between clients and us. We give customers the most favorable price.

6: How long is your Heat Pump delivery time?
It is 3-7 working days if the goods are in stock. if the goods are not in stock, Generally 21-30 working days,it is according to quantity.
