You are here: Home » Products » EVI air to water heat pump » European Standard R32 Refrigerant High COP Split DC Inverter Air to Water Heat Pump for Household

Product Detail

Share to:

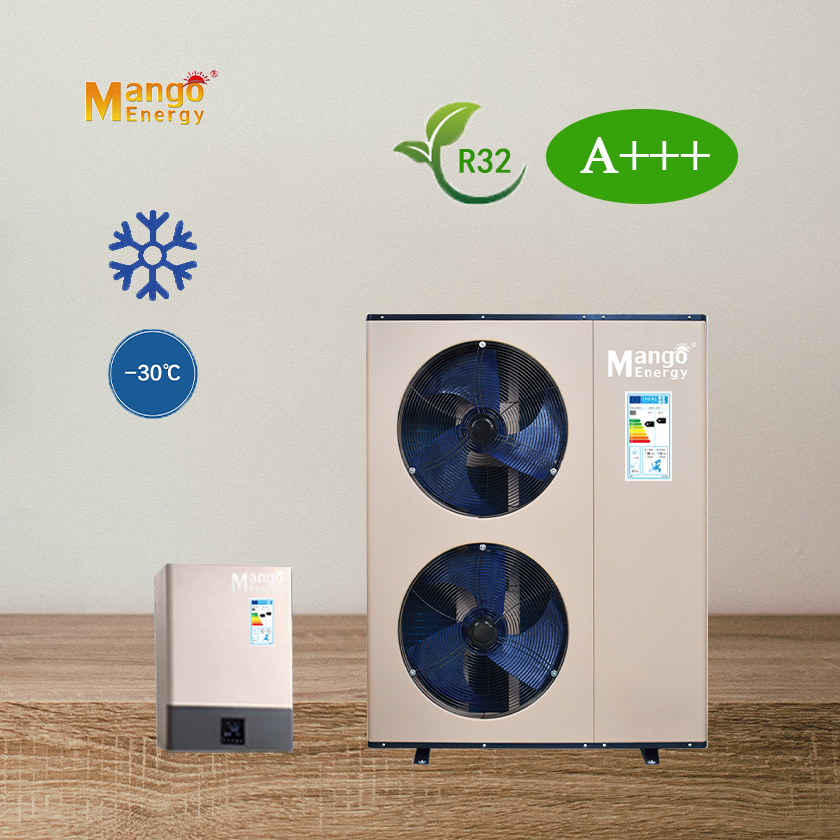

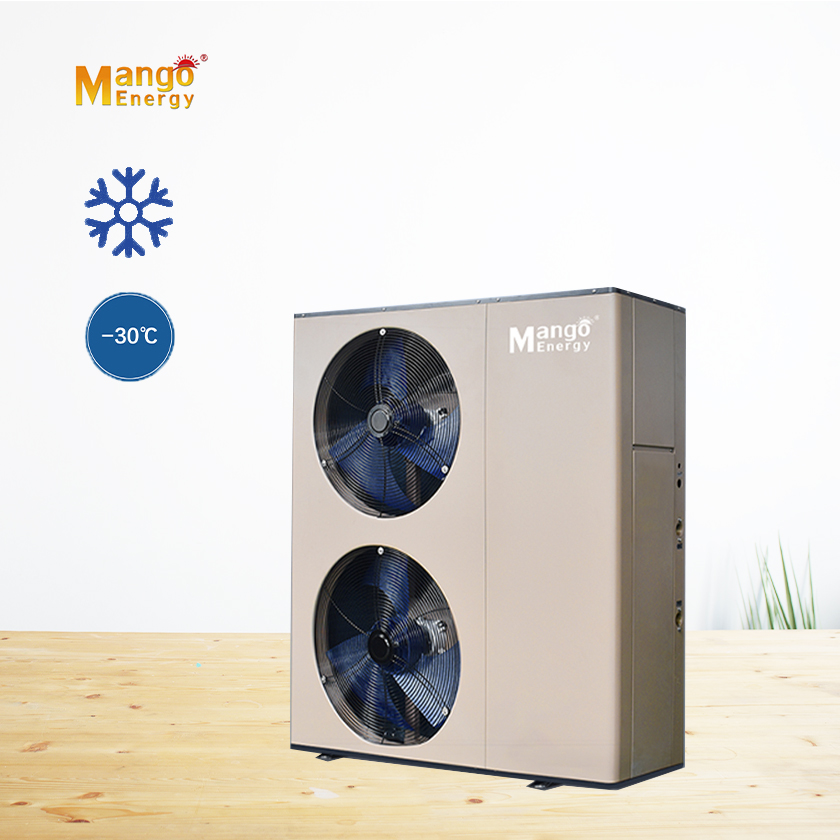

European Standard R32 Refrigerant High COP Split DC Inverter Air to Water Heat Pump for Household

Split full dc inverter air source heat pump in wifi control. 16kw heating capacity. MGSDC-060IIC. M-Gold coating.
Availability:
Quantity:
  • MGSDC-060IIC
  • Mango
  • 8418619126
  • Mango Energy
  • CE, ISO9001, CB, UL, RoHS, SASO, CSA
  • Plywood
  • China
  • Indoor Unit: 480*305*645mm Outdoor Unit: 1050*400*1350mm
  • Villa, Hotel, Garage, Sauna, Apartment Household etc.
Product Description
Name:Ait to Water 16kW Heating Capacity Heat Pump DC Inverter with WIFI
Material:Galvanized Sheet
Function:Heating/Cooling/Hot Water
Package:Wooden package


DC Inverter heat pump Advantages:
1.R32 Refrigerant pipe connection for best system stability even in tough weather.
2.E-heater, diverter valve,water pump,and expansion tank can be included.
3.A+++ Energy Rating Level,with CE,TUV test report.
4.Low noise sound power level as low as 52dB(A).
5.Work down to -30 degree C.
6. WIFI solution available,Carel controller.
7.Function: Heating +Cooling+ Hot water.
Parameter
Model
MGSDC-030IIC
MGSDC-050IIC
MGSDC-060IIC
Power supply
Indoor unit
V/Hz/Ph
220-240/50/1, 380-415/50/3
Outdoor unit
V/Hz/Ph
220-240/50/1
220/380
+7°C/35°C
Floor heating
Heating capacity
kW/h
9
14
16
Power input
kW
2
3.04
3.5
COP
-
4.5
4.6
4.56
+2°C/35°C
Floor heating
Heating capacity
kW/h
8.5
12.5
14.3
Power input
kW
2.18
3.13
3.7
COP
-
3.9
4.0
3.92
-7°C/35°C
Floor heating
Heating capacity
kW/h
7.3
12
13.2
Power input
kW
2.47
3.93
4.47
COP
-
2.96
3.05
2.95
+7°C/45°C
Radiators
Heating capacity
kW/h
9
14
16
Power input
kW
2.54
3.87
4.71
COP
-
3.54
3.62
3.4
-7°C/45°C
Radiators
Heating capacity
kW/h
7
11.8
12.7
Power input
kW
2.92
4.9
5.29
COP
-
2.4
2.41
2.4
+7°C/55°C
Hot water
Heating capacity
kW/h
7.8
13.2
15.1
Power input
kW
2.48
4.24
4.87
COP
-
3.15
3.11
3.1
-12°C/40°C
Floor heating
Heating capacity
kW/h
6
10.5
11.5
Power input
kW
2.6
4.5
5.1
COP
-
2.3
2.36
2.26
+35°C/7°C
Fan coil
Cooling capacity
kW/h
7
11
13
Power input
kW
2.6
3.95
4.81
EER
-
2.7
2.8
2.75
Energy efficiency class
Floor heating
-
A+++
A+++
A+++
DHW mode
-
A++
A++
A++
Heating operation range
Ambient
°C
-30~25
Water side
°C
15~60
Cooling operation range
Ambient
°C
10~43
Water side
°C
7~35
Domestic hot water operation range
Ambient
°C
-30~35
Water side
°C
15~60
Rated water flow rate
m³/h
≥1.55
≥2.4
≥2.75
Rated pressure drop
kPa
30
45
45
Max. working pressure
Refrigerant
Bar
44
44
44
Water
Bar
7
7
7
Controller
-
Micro processor based digital wire controller with LCD display
External cabinet
-
Galvanized steel with powder coating
Compressor
Type
-
Panasonic
Qty.
Nos.
1
1
1
Refrigerant
-
R32
Water heat exchanger
-
SUS 316 Brazed plate heat exchanger
Electric heater(Optional)
kW
2/3KW
Water pump(Optional)
-
DC type, Wilo/Shinhoo/Shimge
Expansion tank(Optional)
L
2
2 / 5
Water connection
Inlet&Outlet
inch
1"
1"
1"
Noise level
Indoor Unit
dB(A)
36
36
36
Outdoor Unit
dB(A)
52
57
57
Net dimension (L*W*H)
Indoor Unit
mm
480*305*645
480*305*645
480*305*645
Outdoor Unit
mm
925*375*770
1050*400*1350
1050*400*1350
Packing
Indoor Unit
mm
520*365*700
520*365*700
520*365*700
Outdoor Unit
mm
1005*435*890
1130*470*1450
1130*470*1450
Net weight
Indoor Unit
kg
38
45
48
Outdoor Unit
kg
76
120
140
Features
A.Top SCOP
Panasonic/Toshiba/Sanyo Inverter Rotary compressor and ECO R32/R410 refrigerant for max heat capacity and less refrigerant, large volume of latent heat from the air via evaporator in coldest season.
B.Ultra frequency conversion technology
Based on the principle of proportional relationship between motor speed and input frequency of working power supply: n = 60f(1-s)/p and changing motor speed by changing working power frequency of the motor, it adopts AC-DC-AC power conversion technology, relying on our powerful control system with PWM generation ability, integrate V/F, vector control (VC) and direct torque control (DTC) to achieve control method of variable frequency PID calculus, mainly drive variable frequency by way of PWM synthesis drive, fully integrate power, electronics, microcomputer control and other technologies.
C.Advanced Carel Operate System, ultra intelligent
Especially superior heat dissipation circuit board design, longer service, over 3 time of other brand's, simple click and fully play the characteristics of DC inverter frequency conversion system to achieve overlocking performance.
D.Multi-speed mute fan motor
ROHS fan blades, ultra-low noise, durable & reliable, constant max air flow to satisfy heat supply.
E.Soft-start and soft-shutdown
Protecting both electrical system and all key parts, such a EEV, SANHUA 4-way valve, LG AC contactor & other World famous brand components ensure heat pump device 2-3 time longer service by
1) making output torque of the motor meeting the requirements of mechanical system for starting torque, ensuring smooth acceleration & smooth transition, and avoiding destructive torque impact;
2) achieving both starting current meeting the requirements of motor's bearing capacity, and the insulation damage or burnout caused when it starts.
3) reducing both voltage sag range and the content of high-order harmonics etc.
F.High-tech shock-absorption all copper construction piping
High-accurate completely automatic silver welding, easy maintenance.
G.High-density protective jacket for minimum heat lost
Aviation class insulation foam with outstanding sound absorption.
H.Classic European outlook forming
Fashion taste, never out of time.
I.Portable compact design
Saving room for installation & operation.
J.Fast heating and cooling speed
Before the indoor temperature reaches the set value, the Panasonic rotary compressor delivers high levels of efficiency, enabling the unit to operate at high frequency so that it can heat water or provide house heating/cooling at a faster speed.
Smart controller
1.Mango dc inverter heat pump with intelligent  controller with RS485 is adopted to realize the linkage control between the heat pump unit and the terminal application end.
2.With the Cascade function, multiple heat pumps can be controlled at once for greater all day operating efficiency.
3.With WIFI APP enables users to operate their units through a smart phone wherever and whenever they are.
Indoor inner view
Installation reference
Mangos' factory
Mango Energy Certificate
Our quality management system was certified in conformity with ISO9001 Standard, heat pumps with CE, TUV, ErP, certificated.
And also with customized OEM/ODM services for distributors all over the world.Now Mango brand heat pump has been exported to more than 100 countries, even well installed.
FAQ
Q1> What does mango energy company do ?
A1: Mango energy is professional manufacturer of ON/OFF heat pump , DC inverter heat pump, air source heat pump,water to water heat pump , swimming pool heat pump,high temperature heat pump so on all kind of heat pump.

Q2> What is the daily production of Mango energy company ?
A2: Mango energy one day produce heat pump water heater around 150~255 PCS / day.

Q3> What Mango energy do for their agent / distributor /OEM ?
A3 : Mango energy offer sales training , heat pump & solar air conditioner product training,
After sales service training , maintenance machine training , big air chiller ,or heating
Project design case training , inside parts exchange training and test training.

Q4> What Mango energy offer to their business partner ?
A4: Mango energy offer 1%~2% free spare parts according to order quantity .
      Offer whole this district market exclusive sales right .
      Offer rebate as this district agent sales amount within one year .
      Offer best competitive price & repair parts .
      Offer 24 hours online service .


Q5> where is Mango energy heat pump using ?

A5: Because Air source heat pump save energy around 70% , ( EVI heat pump and central cooling & heating heat pump ) is Widely used in home heating, hotels hot water & heating , restaurants, hospitals,schools,bath center, residential central heating and hot water plants, etc.
