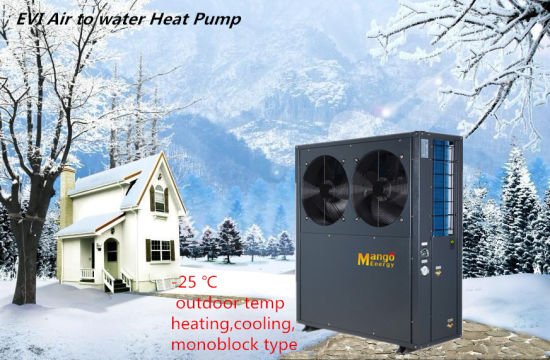

Heat Pump Air to Water Evi, Heating & Hot Water 10.8kw/11.8kw/20.6kw/40.6kw Capacity (CE, RoHS)

Share to:

Heat Pump Air to Water Evi, Heating & Hot Water 10.8kw/11.8kw/20.6kw/40.6kw Capacity (CE, RoHS)

Quantity:


Inquire Add to Basket

Model NO.: MG-05KFGRS
Certification: CE, ISO9001, CCC, CB, UL, RoHS, SASO, CSA
Trademark: Mango
Transport Package: Plywood
Specification: 830*490*1160
Origin: China
HS Code: 84189910

Product Description

Heat Pump air to water EVI , heating & hot water 10.8kw/11.8kw/20.6kw/40.6kw capacity(CE,RoHS)

Model				MG-03KFGRS	MG-03KFGRS/380	MG-05KFGRS	MG-10KFGRS	MG-20KFGRS
Standard components	Cabinet/color			Spray coating
	Refrigerant			R407C
	Power supply			220V~240V/50Hz/1ph	380V~415V/50Hz/3ph
	Compressor type			Copeland EVI compressor
	Compressor model * quantity			ZW30KSE*1	ZW34KSE*1	ZW61KSE*1	ZW61KSE*2	ZW108KSE*2
	Condenser			High efficiency shell and tube heat exchanger
	Economy unit			Plate heat exchanger
	Evaporator			Blue hydrophilic aliuminium foil,wavy fin and copper tube heat exchanger
	Throttle unit			Heat expansion valve
	A/C contactor
	Thermal relay
	Controller			Muti-function controller
	Protection function			Tempreature protection, time protection, water flow protection, antifreeze protection, current protection
	Low pressure switch			0.05/0.15MPa
	High pressure switch			3.0/3.2MPa
	Power supply line size			2.5mm²	2.5mm²	4mm²	6mm²	10mm²
	Package		WDH	9105001320	9105001320	11605001410	15108201320	194011202180
Specifications	Heating capacity	20ºC	kW	10.8	11.8	20.6	40.6	74.4
	Input power when heating		kW	2.81	3.1	5.4	10.7	19.6
	Rated current		A	12.4	5.9	9	17.6	35.2
	COP			3.84	3.81	3.81	3.79	3.80
	Hot water capacity		L/H	232	254	443	873	1599
	Heating capacity	-10ºC	kW	6.3	7	12.6	24.4	43.2
	Input power when heating		kW	2.58	2.9	5.1	9.9	17.4
	COP			2.44	2.41	2.47	2.46	2.48
	Hot water capacity		L/H	135	150	271	524	929
	Heating capacity	-20ºC	kW	4.9	5.4	10.3	19.6	31
	Input power when heating		kW	2.45	2.68	5.05	9.8	15.36
	COP			2.00	2.01	2.04	2.00	2.02
	Hot water capacity		L/H	105	116	221	421	666
	Rated outlet water temp		ºC	55
	Max outlet water temp		ºC	60
	Water flow		m³/H	2415	2638	4606	9078	16636
	Level of protection			IPX4	IPX4	IPX4	IPX4	IPX4
	Electric shock proof grade			I	I	I	I	I
	Noise		dB(A)	≤55	≤55	≤58	≤66	≤75
	Net weight		kg	112	112	164	320	556
	Gross weight		kg	118	118	174	333	606
	Dimension		WDH	8304901160	8304901160	10904801260	14507401150	185010001950
	Pipe size		mm	DN25	DN25	DN25	DN32	DN50
	Working mode			Heating
