Hot sell EVI low temperature air to water heat pump 20kw for -25dC~43dC house heating | Model | MG-05KFGRS |
| Heating capacity | 20ºC | kW | 20 |
| Heating input power | kW | 4.69 |
| Rated current | A | 9.4 |
| COP | | 4.26 |
| Hot water capacity | L/H | 430 |
| Heating capacity | 7ºC | kW | 16 |
| Heating input power | kW | 4.64 |
| COP | | 3.45 |
| Hot water capacity | L/H | 344 |
| Heating capacity | -10ºC | kW | 11.2 |
| Heating input power | kW | 4.36 |
| COP | | 2.57 |
| Hot water capacity | L/H | 214 |
| Heating capacity | -20ºC | kW | 8.4 |
| Heating input power | kW | 4.2 |
| COP | | 2.00 |
| Hot water capacity | L/H | 161 |
| Power supply | 380V~415V/50Hz/3ph |
| Rated/Max outlet water temp | ºC | 55~60 |
| Level of protection | IPX4 |
| Electric shock proof grade | I |
| Water flow | m3/H | 4.3 |
| Water pressure drop | kPa | ≤65 |
| Refrigerant | R407C |
| Compressor | Copeland EVI compressor |
| Compressor model * qty | ZW61KSE*1 |
| Condenser | High efficient tube-in-shell HE |
| Evaporator | Finned heat exchanger |
| Fan Motor | 90W*2 |
| Economy unit | Stainless steel Plate heat exchanger |
| 4-way valve | SHF-20A-46*1 |
| Throttle unit | Danfoss Thermal expansion valve |
| A/C contactor and Thermal relay | LG Brand |
| Controller | LCD wire controller |
| Ambient temperature | (-25ºC -- 46ºC) |
| High pressure switch | 3.0/3.4MPa |
| Low pressure switch | 0.05/0.15MPa |
| Water pipe size | | DN25 |
| Noise | dB(A) | ≤55 |
| Dimension | L*W*H | 1110*490*1410 |
| Weight | kg | 155 |
Hot sell EVI low temperature air to water heat pump 20kw for -25dC~43dC house heating
Other models specification:
| Model | MG-03KFGRS | MG-045KFGRS | MG-03KFGRS/380 | MG-05KFGRS | MG-07KFGRS |
| Heating capacity | 20ºC | kW | 11 | 18.5 | 11 | 20 | 28 |
| Input power | kW | 2.61 | 4.37 | 2.59 | 4.69 | 6.57 |
| Rated current | A | 12.5 | 20.9 | 5.2 | 9.4 | 13.2 |
| COP | | 4.22 | 4.23 | 4.25 | 4.26 | 4.26 |
| Hot water supply | L/H | 236 | 398 | 236 | 430 | 602 |
| Heating capacity | 7ºC | kW | 8.8 | 14.8 | 8.8 | 16 | 22.4 |
| Input power | kW | 2.54 | 4.30 | 2.54 | 4.64 | 6.49 |
| COP | | 3.46 | 3.44 | 3.47 | 3.45 | 3.45 |
| Hot water capacity | L/H | 189 | 318 | 189 | 344 | 482 |
| Heating capacity | -10ºC | kW | 6.2 | 10.4 | 6.2 | 11.2 | 15.7 |
| Input power | kW | 2.42 | 4.05 | 2.40 | 4.36 | 6.10 |
| COP | | 2.55 | 2.56 | 2.57 | 2.57 | 2.57 |
| Hot water supply | L/H | 118 | 198 | 118 | 214 | 300 |
| Heating capacity | -20ºC | kW | 4.6 | 7.8 | 4.6 | 8.4 | 11.8 |
| Input power | kW | 2.25 | 3.83 | 2.30 | 4.20 | 5.88 |
| COP | | 2.05 | 2.03 | 2.01 | 2.00 | 2.00 |
| Hot water supply | L/H | 88 | 148 | 88 | 161 | 225 |
| Power supply | 220~240V/50Hz/1ph | 380~415V/50Hz/3ph |
| Rated/Max outlet water temp | 55~60ºC |
| Water flow | m3/H | 2.4 | 4.0 | 2.4 | 4.3 | 6.0 |
| Water pressure drop | kPa | ≤40 | ≤50 | ≤40 | ≤65 | ≤70 |
| Refrigerant | R407C |
| Compressor | Copeland EVI compressor |
| Compressor model * qty | ZW34KSE*1 | ZW52KSE*1 | ZW34KSE*1 | ZW61KSE*1 | ZW79KSE*1 |
| Condenser | High efficient tube-in-shell heat exchanger |
| Evaporator | Blue hydrophilic aliuminium foil,wavy fin and copper tube heat exchanger |
| Fan Motor | 90W*1 | 90W*2 | 90W*1 | 90W*2 | 90W*2 |
| Economy unit(Plate HE) | MTB020-17 | MTB020-17 | MTB020-17 | MTB020-17 | MTB020-17 |
| 4-way valve | SHF-11-45D1*1 | SHF-20A-46*1 | SHF-11-45D1*1 | SHF-20A-46*1 | SHF-20A-46*1 |
| Throttle unit | Danfoss Thermal expansion valve |
| A/C contactor&Thermal relay | LG Brand |
| Ambient temperature | ( -25ºC~46ºC ) |
| High pressure switch | 3.0/3.4MPa |
| Low pressure switch | 0.05/0.15MPa |
| Water pipe size | | DN25 | DN25 | DN25 | DN25 | DN25 |
| Noise | dB(A) | ≤52 | ≤55 | ≤52 | ≤55 | ≤56 |
| Dimension | L*W*H | 830*490*1160 | 1110*490*1410 | 830*490*1160 | 1110*490*1410 | 1237*480*1410 |
| Weight | kg | 105 | 155 | 105 | 155 | 165 |
| Model | MG-10KFGRS | MG-15KFGRS | MG-
20KFGRS | MG-
25KFGRS | MG-
30KFGRS |
| Heating capacity | 20ºC | kW | 40 | 56 | 75 | 95 | 110 |
| Input power | kW | 9.41 | 13.18 | 17.52 | 22.25 | 25.76 |
| Rated current | A | 18.9 | 26.4 | 35.1 | 44.6 | 51.6 |
| COP | | 4.25 | 4.25 | 4.28 | 4.27 | 4.27 |
| Hot water supply | L/H | 860 | 1204 | 1612 | 2042 | 2365 |
| Heating capacity | 7ºC | kW | 32 | 44.8 | 60 | 76 | 88 |
| Input power | kW | 9.30 | 13.02 | 17.24 | 21.97 | 25.43 |
| COP | | 3.44 | 3.44 | 3.48 | 3.46 | 3.46 |
| Hot water capacity | L/H | 688 | 963 | 1290 | 1634 | 1892 |
| Heating capacity | -10ºC | kW | 22.4 | 31.4 | 42.0 | 53.2 | 61.6 |
| Input power | kW | 8.68 | 12.16 | 16.34 | 20.78 | 24.06 |
| COP | | 2.58 | 2.58 | 2.57 | 2.56 | 2.56 |
| Hot water supply | L/H | 428 | 599 | 803 | 1017 | 1177 |
| Heating capacity | -20ºC | kW | 16.8 | 23.5 | 31.5 | 39.9 | 46.2 |
| Input power | kW | 8.28 | 11.64 | 15.29 | 19.37 | 22.54 |
| COP | | 2.03 | 2.02 | 2.06 | 2.06 | 2.05 |
| Hot water supply | L/H | 321 | 449 | 602 | 762 | 883 |
| Power supply | 380~415V/50Hz/3ph |
| Rated/Max outlet water temp | 55~60ºC |
| Water flow | m3/H | 8.6 | 12.0 | 16.1 | 20.4 | 23.6 |
| Water pressure drop | kPa | ≤68 | ≤78 | ≤80 | ≤85 | ≤88 |
| Refrigerant | R407C |
| Compressor | Copeland EVI compressor |
| Compressor model * qty | ZW61KSE*2 | ZW79KSE*2 | ZW108KSE*2 | ZW125KSE*2 | ZW108KSE*3 |
| Condenser | High efficient tube-in-shell heat exchanger |
| Evaporator | Blue hydrophilic aliuminium foil,wavy fin and copper tube heat exchanger |
| Fan Motor | 250W*2 | 550W*2 | 630W*2 | 710W*2 | 710W*2 |
| Economy unit(Plate HE) | MTB020-17*2 | MTB020-17*2 | MTB020-34*2 | MTB020-34*2 | MTB020-34*3 |
| 4-way valve | SHF-20A-46*2 | SHF-20A-46*2 | SHF-35A-79*2 | SHF-35A-79*2 | SHF-35A-79*3 |
| Throttle unit | Danfoss Thermal expansion valve |
| A/C contactor&Thermal relay | LG Brand |
| Ambient temperature | ( -25ºC~46ºC ) |
| High pressure switch | 3.0/3.4MPa |
| Low pressure switch | 0.05/0.15MPa |
| Water pipe size | | DN40 | DN40 | DN50 | DN65 | DN65 |
| Noise | dB(A) | ≤66 | ≤68 | ≤70 | ≤72 | ≤75 |
| Dimension | L*W*H | 1507*857*1611 | 1507*857*1611 | 1850*1000*1950 | 2000*1100*2080 | 2200*1100*2080 |
| Weight | kg | 320 | 400 | 570 | 620 | 730 |

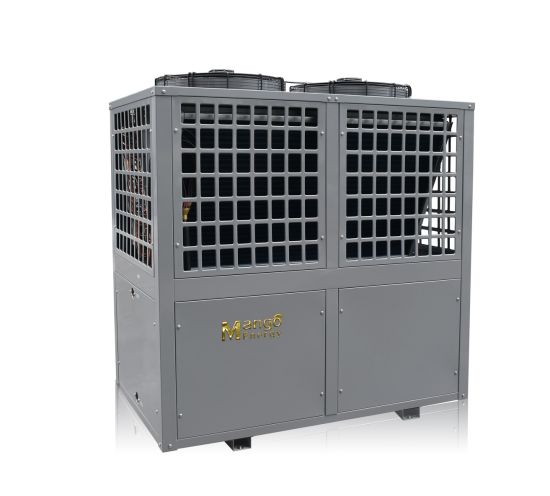

Picture:
Hot sell EVI low temperature air to water heat pump 20kw for -25dC~43dC house heating
20kw COP chart | Heating capacity at different condition |
| Model | MG-05KFGRS 380V |
| Air temp ºC | Heating capacity (KW) |
| A-25 | 7.3 | 6.5 | 5.9 |
| A-20 | 8.8 | 8.0 | 7.3 |
| A-15 | 10.3 | 9.5 | 8.8 |
| A-7 | 12.1 | 11.3 | 10.6 |
| A2 | 14.1 | 13.3 | 12.6 |
| A7 | 16.0 | 15.3 | 14.6 |
| A12 | 18.0 | 17.4 | 16.8 |
| A20 | 20.0 | 19.5 | 19.1 |
| Hot water temp ºC | 35 | 45 | 55 |
| Air temp ºC | Input Power (KW) |
| -25 | 3.44 | 3.53 | 3.53 |
| -20 | 3.48 | 3.62 | 3.66 |
| -15 | 3.53 | 3.71 | 3.79 |
| -7 | 3.65 | 3.88 | 4.02 |
| 2 | 3.82 | 4.07 | 4.26 |
| 7 | 3.99 | 4.25 | 4.50 |
| 12 | 4.22 | 4.50 | 4.81 |
| 20 | 4.55 | 4.90 | 5.31 |
| Air temp ºC | COP kW/kW |
| -25 | 2.11 | 1.85 | 1.67 |
| -20 | 2.51 | 2.20 | 1.99 |
| -15 | 2.92 | 2.56 | 2.31 |
| -7 | 3.32 | 2.91 | 2.63 |
| 2 | 3.69 | 3.27 | 2.96 |
| 7 | 4.01 | 3.59 | 3.25 |
| 12 | 4.27 | 3.86 | 3.49 |
| 20 | 4.40 | 3.98 | 3.60 |
| Hot water temp ºC | 35 | 45 | 55 |
Hot sell EVI low temperature air to water heat pump 20kw for -25dC~43dC house heating Installation:
Hot sell EVI low temperature air to water heat pump 20kw for -25dC~43dC house heating
Sample projects:
