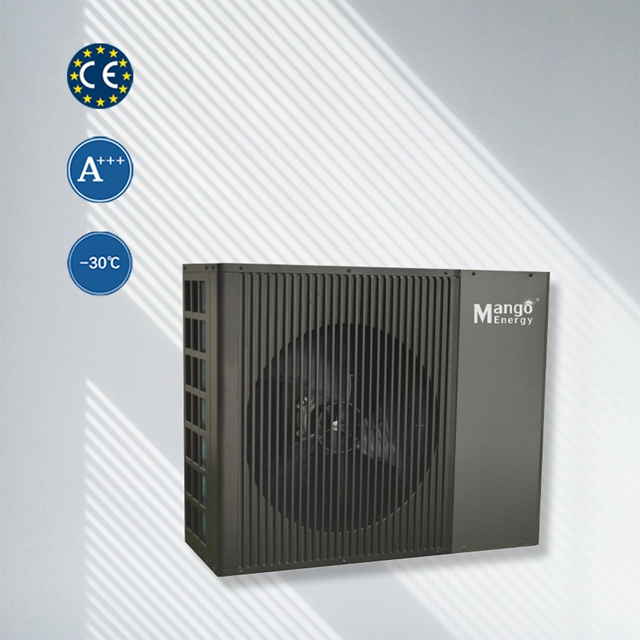

Mango Energy 2023 New Achievement R32 Air Source Heat Pump with WIFI Full DC Inverter High COP

Mango Energy 2023 new design monoblock air source heat pump. Full dc inverter. WiFi control available. R32 as refrigerant. 10.5kw heating capacity. MGSDC-030IIC. Black coating.
Availability:
Quantity:
  • MGSDC-030IIC
  • Mango
  • 8418619159
  • Mango Energy
  • CE, ISO9001, CB, UL, RoHS, SASO, CSA
  • Plywood
  • China
  • 925X375X745mm
  • Villa, Hotel, Garage, Sauna, Apartment Household etc.
Product Description
Name:R32 High COP Monoblock Air Source Heat Pump
Material: Galnanized Sheet
Function:Heating/Cooling/Hot Water
Package:Wooden package


DC Inverter heat pump Advantages:
1.R32 Refrigerant pipe connection insures the system stability even in tough weather.
2.E-heater, diverter valve, water pump, and expansion tank can be included.
3.ERP A+++,with CE,TUV test report.
4.Silent operation low as 52dB.
5.Work down to -30 degree C.
6.Carel controller, WIFI Connection available.
7.Function: Heating +Cooling+ Hot water.
Parameter
Model
MGSDC-030IC
Power supply(V/Ph/Hz)
220V/1ph/50HZ 380V/3ph/50HZ
Rate heating capacity(kW)
(A20/W45)
11
COP
4.21
Rate heating capacity(kW)
(A7/W45)
9.25
COP
3.36
Rate heating capacity(kW)
(A-12/W41)
5.8
COP
2.35
Cooling capacity(KW)
(A35/W7)
8.2
EER
3.06
Water flow(m3/h)
1.1
Outlet water temp(℃)
55-60℃
Work Ambient temperature(℃)
-25℃-43℃
Key parts
1) More compact with slim body;
2) Much lighter for transportation & stallation;
3) Dual rotary compressor, more stable operating & lower operate noise, more ECO;
4) Permanent magnet, no exciting current, rapidly ware & tear decreasing, higher efficiency.
5) R32 refrigerants capable, green enough for environment.
Features
A.Top SCOP
Inverter Rotary compressor and ECO R32 refrigerant for max heating capacity and less refrigerant necessary, large amount of latent heat from the air via evaporator in even worst weather.
B.Ultra frequency conversion technology
Based on the principle of proportional relationship between motor speed and input frequency of working power supply: n = 60f(1-s)/p and changing motor speed by changing working power frequency of the motor, it adopts AC-DC-AC power conversion technology, relying on our powerful control system with PWM generation ability, integrate V/F, vector control (VC) and direct torque control (DTC) to achieve control method of variable frequency PID calculus, mainly drive variable frequency by way of PWM synthesis drive, fully integrate power, electronics, microcomputer control and other technologies.
C.Advanced Carel Operate System, ultra intelligent
Especially splendid heat dissipation circuit board design, longer service, over 3 times of other brands', simple click and fully achieve the excellence of DC inverter conversion system for outstanding performance.
D.Multi-speed mute fan motor
ROHS fan blades, ultra-low noise, durable & reliable, constant max air flow to satisfy heat supply.
E.Soft-start and soft-shutdown
Protecting both electrical system and other key parts, such a EEV, SANHUA 4-way valve, LG AC contactor & other World famous brand components to ensure the heat pump device 2-3 times longer service by 1) making output torque of the motor meet the requirements of mechanical system for starting torque, guaranteeing smooth acceleration & transition, and avoiding destructive torque impact; 2) modulating starting current to fit the motor's bearing capacity, and avoid the insulation damage or burnout caused when it starts. 3) reducing both voltage sag range and the content of high-order harmonics etc.
F.High-tech shock-absorption all copper construction piping
High-accurate completely automatic silver welding, easy maintenance.
G.High-density protective jacket for minimum heat lost
Aviation class insulation foam with outstanding sound absorption.
H.Classic European outlook forming
Fashion taste, never out of time.
I.Portable compact design
Saving room for installation & operation.
J.Fast heating and cooling speed
Before the indoor temperature reaches the set value, the Panasonic rotary compressor operates at high power, enabling the unit to work at high frequency so that it can heat water or provide house heating/cooling at a faster speed.
Mangos' factory
Mango Energy Certificate
Our quality management system was certified in conformity with ISO9001 Standard, heat pumps with CE, TUV, ErP, certificated.  And also with customized OEM/ODM services for distributors all over the world.Now Mango brand heat pump has been exported to more than 100 countries, even well installed.
