Mango energy KW 11.8- 23.5KW heating capacity Direct heating air Source heat pump (55-60 degree)

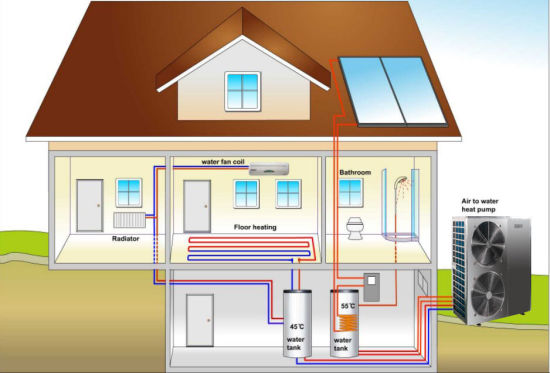

Direct heating air source heat pump
| Direct heating air Source Heat Pump (Top Discharge) |
|
|
|
|
| Model No. | Unit | MG-03ZR-D | MG-05ZR-D | MG-06ZR-D |
| Heating Capacity | KW | 11.8 | 19.8 | 23.2 |
| Power Input | KW | 2.8 | 4.7 | 5.5 |
| Rated Current | Amps | 12.2 | 9 | 11 |
| function mode |
| Direct heating+cycle mode |
| Rated Water Temp. | ºC | 55 |
| Highest Water Temp. | ºC | 60 |
| Power Supply |
| 220V/1P/50Hz | 380V/3P/50Hz |
| Anti-electric Shock Type |
| I |
| Compressor |
| Copeland Scroll |
| Fan Direction | Discharge | Vertical (Top discharge) |
| Quantity of Fan |
| 1 |
| Refrigerant |
| R22 ,R417C,R407C |
| Working Ambient temp. | ºC | -7-43 | -7-43 | -7-43 |
| Hot Water Supply | L/H | 232 | 387 | 404 |
| Circulation of Water Capacity | M3/h | 3 | 5 | 6 |
| Pressure from Tap Water | kPa | 46 | 46 | 46 |
| Noise | dBA | <=54 | <=56 | <=58 |
| Mainframe Weight | kg | 100 | 160 | 170 |
| Dimension(mm) | Length | 810 | 881 | 1110 |
| Width | 691 | 713 | 490 |
| Height | 750 | 950 | 1260 |
