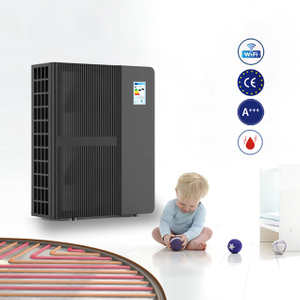

Mango Energy Max 60C Water Supply All in one Air Source Heat Pump Full DC Inverter R32 Erp A+++ CE TUV

As a specialized heat pump manufacturer, Mango Energy promoted the new series of air source heat pump. Full DC inverter technology. Rotary Panasonic dc inverter compressor. Brushless dc fan motor. R32 as refrigerant. 16kw heating capacity. Max 60℃ outlet water temp. MGSDC-050IIC. Champagne coating.
Availability:
Quantity:
  • MGSDC-050IIC
  • Mango
  • 8418619181
  • Mango Energy
  • CE, ISO9001, CB, UL, RoHS, SASO, CSA
  • Plywood
  • China
  • 1050X400X1350(mm)
  • Villa, Hotel, Garage, Sauna, Apartment Household etc.
Product Description
Name: 16kw Monoblock DC Inverter Heat Pump with WIFI
Material:Galvanized Sheet
Function:Heating/Cooling/Hot Water
Package:Wooden package


  DC Inverter heat pump Advantages:
1.R32 with copper pipe connection for best system stability even in tough weather.
2.Function: Heating +Cooling+ Hot water.
3.E-heater, diverter valve,water pump,and expansion tank can be included.
4.A+++ Energy Rating, with CE,TUV test report.
5.Low noise sound level as low as 52dB(A).
6.Work down to -30 degree C.
7. WIFI solution available,Carel controller.
Parameter
Model

MGSDC-030IIC
MGSDC-050IIC
MGSDC-060IIC
MGSDC-080IIC
Power Supply
V/Ph/Hz
220-240V~/50Hz/1ph, 380-415V/50Hz/3ph
Refrigerant Type

R32
[Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 30°C/35°C
Max Heating Capacity
kW
2.32-9.65
3.53-15.76
4.81-18.85
6.36-25.14
Power Input
kW
0.38-2.10
0.58-3.49
0.81-4.31
1.08-5.81
COP

6.06-4.59
6.01-4.51
5.89-4.37
5.87-4.33
[Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 50°C/55°C
Max Heating Capacity
kW
1.81-7.83
2.38-10.86
2.82-14.12
3.41-17.69
Power Input
kW
0.43-3.05
0.58-4.31
0.64-5.34
0.89-7.04
COP

4.15-2.56
4.11-2.52
4.37-2.64
4.32-2.51
[Space Cooling] Ambient Temp. (DB/WB): 35°C / -, Water Temp. (Inlet/Outlet): 12°C/7°C.
Max Cooling Capacity
kW
1.43-7.80
2.06-11.40
2.63-14.50
3.31-20.52
Power Input
kW
0.32-2.92
0.46-4.3
0.59-5.53
0.76-7.86
COP

4.45-2.68
4.43-2.65
4.41-2.62
4.32-2.61
[Hot Water] Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. from 15°C to 55°C.
Max Heating Capacity
kW
10.5
16
19.5
24.8
Power Input
kW
2.18
3.36
4.04
5.23
COP

4.82
4.76
4.83
4.74
General Info
ErP Level (35°C)

A+++
ErP Level (55°C)

A++
Max. Power Input
kW
3.3+3/3.5+3
6+3/6.5+3
6+3/6.5+3
7.7+3/8.0+3
Max. Running Current
A
15+13.6/15.9x3+3
9.1+13.6/9.85x3+13.6
9.1+13.6/9.85x3+13.6
35+13.6/12.12x3+13.6
Compressor Brand

Panasonic
Fan Motor Type

DC motor
Water Side Heat Exchanger

SUS 316 Brazed plate heat exchanger
Air Side Heat Exchanger

Finned Heat Exhanger
Display

Micro processor based digital wire controller with LCD display
Wi-Fi Function

Yes
Rated Water Flow
m³/h
≥1.6
≥2.1
≥2.7
≥3.4
Water Pressure Drop
kPa
30
38
38
45
Water Pipe Connection
inch
1"
1"
1"
1-1/4"
Sound Pressure Level at 1m
dB(A)
43~54
43~55
44~55
45~58
Operation Range
°C
-30~43
Max. Outlet Water Temp.
°C
55~60
Water Proof Class

IPX4
Electricity Shock Proof

I
G/W
kg
107
153
153
192
Net Dimensions (L×W×H)
mm
925X375X745
1050X400X1350
1050X400X1350
1175X400X1482
Package Dimensions (L×W×H)
mm
980X410X885
1105X445X1455
1105X445X1455
1200X490X1565
Five working modes
Mode 1:Central Hot Water: Constant Temperature, Sufficient Water Volume, 24-hour Constant Supply
Mode 2:Central Cooling: Water Cooled Air Conditioning, Soft Air Supply, Comfortable for Human Body.
Mode 3: Whole House Heating: Water Cycled Floor Heating,Well-distributed Heat Dissipation, Healthy & Energy Saving.
Mode 4: HotWater + House Cooling: Meet the Requirements of Both Central Hot Water and Air Conditioning.
Mode 5: Hot Water + House Heating: Meet the Requirements of Both Central Hot Water and Room Heating.
Features
A.Top SCOP
Inverter Rotary compressor and ECO R32 refrigerant for max heating capacity and less refrigerant necessary, large amount of latent heat from the air via evaporator in even worst weather.
B.Ultra frequency conversion technology
Based on the principle of proportional relationship between motor speed and input frequency of working power supply: n = 60f(1-s)/p and changing motor speed by changing working power frequency of the motor, it adopts AC-DC-AC power conversion technology, relying on our powerful control system with PWM generation ability, integrate V/F, vector control (VC) and direct torque control (DTC) to achieve control method of variable frequency PID calculus, mainly drive variable frequency by way of PWM synthesis drive, fully integrate power, electronics, microcomputer control and other technologies.
C.Advanced Carel Operate System, ultra intelligent
Especially splendid heat dissipation circuit board design, longer service, over 3 times of other brands', simple click and fully achieve the excellence of DC inverter conversion system for outstanding performance.
D.Multi-speed mute fan motor
ROHS fan blades, ultra-low noise, durable & reliable, constant max air flow to satisfy heat supply.
E.Soft-start and soft-shutdown
Protecting both electrical system and other key parts, such a EEV, SANHUA 4-way valve, LG AC contactor & other World famous brand components to ensure the heat pump device 2-3 times longer service by
1) making output torque of the motor meet the requirements of mechanical system for starting torque, guaranteeing smooth acceleration & transition, and avoiding destructive torque impact;
2) modulating starting current to fit the motor's bearing capacity, and avoid the insulation damage or burnout caused when it starts.
3) reducing both voltage sag range and the content of high-order harmonics etc.
F.High-tech shock-absorption all copper construction piping
High-accurate completely automatic silver welding, easy maintenance.
G.High-density protective jacket for minimum heat lost
Aviation class insulation foam with outstanding sound absorption.
H.Classic European outlook forming
Fashion taste, never out of time.
I.Portable compact design
Saving room for installation & operation.
J.Fast heating and cooling speed
Before the indoor temperature reaches the set value, the Panasonic rotary compressor operates at high power, enabling the unit to work at high frequency so that it can heat water or provide house heating/cooling at a faster speed.
Carel smart controller
1.Mango dc inverter heat pump with intelligent CAREL controller with RS485 is adopted to realize the linkage control between the heat pump unit and the terminal application.
2.With the Cascade function, multiple heat pumps can be controlled at any time for greater operating efficiency.
3.WIFI APP enables users to operate their units through a smart phone whenever and wherever they are.
Key Parts
Installation reference
Installation Cases
Mangos' factory
Mango Energy Certificate
Our quality management system was certified in conformity with ISO9001 Standard, heat pumps with CE, TUV, ErP, certificated. And also with customized OEM/ODM services for distributors all over the world.Now Mango brand heat pump has been exported to more than 100 countries, even well installed.
