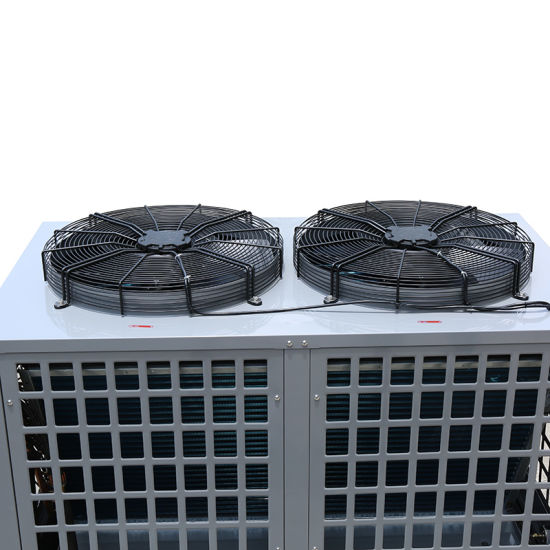

Normal air to water heat pump unit /air source heat pump hot water system
Heat pump features:
1) Multiple protections to protect the compressor and the heat exchanger.
2) With auxiliary heating control, circulation pump control.
3) Optional modular controller is available.
4) With timer function.
5) Adjustable defrosting according to different weather conditions.
6) Stable water flow switch .
7) With terminal for indoor thermostat, starting or standby the heat pump.
8) Air exchanger (fin-coil) with hydrophilic coating.
9) Anti-corrosion case: durable coating; no-screw design with stainless steel bolts and nuts,no rust.
10)Simple installation: can be placed on roof top, balcony, yard, or basement.
11)Low noise fan motor. Long lifespan up to 15 years.
12)Modular design: We can add on more units according to user's requirement.
13)All weather operation: Running without being effected by weather, even snow or rain.
14)Environment protection: No pollution and waste needs to discharge in entire working cycle.
15) Economy: The running costs of a heat pump can be less than those of a traditional gas boiler heating system.
| Model No. | Unit | MG-030KFXRS | MG-050KFXRS | MG-080KFXRS | MG-100KFXRS | MG-120KFXRS | MG-200KFXRS | MG-250KFXRS | ||||
| Heating Capacity | KW | 10.8 | 18 | 28.8 | 38 | 43.2 | 72 | 86.4 | ||||
| Power Input | KW | 2.7 | 4.5 | 7.2 | 9.6 | 10.8 | 18 | 21.6 | ||||
| Largest Current | A | 5.9 | 5.9 | 9 | 11.2 | 17.6 | 36.1 | 41.4 | ||||
| Rated Water Temp. | ºC | 55 | 55 | 55 | 55 | 55 | 55 | 55 | ||||
| Highest Water Temp. | ºC | 60 | 60 | 60 | 60 | 60 | 60 | 60 | ||||
| Power Supply | 220V/1P/50Hz | 380V/3P/50Hz | ||||||||||
| Anti-electric Shock Type | ||||||||||||
| Compressor | Scroll | |||||||||||
| Compressor brand | Copeland | |||||||||||
| Quantity of Compressor | 1 | 1 | 2 | 2 | 4 | 4 | ||||||
| Fan Direction | Discharge | Vertical | ||||||||||
| Quantity of Fan | 1 | 1 | 2 | 2 | 3 | 3 | ||||||
| Refrigerant | R417A | |||||||||||
| Ambient temp. | ºC | -10-45 | -10-45 | -10-45 | -10-45 | -10-45 | -10-45 | -10-45 | ||||
| Hot Water Supply | L/H | 267 | 400 | 620 | 817 | 928 | 1548 | 1856 | ||||
| Pipe Size | Inch | 1″ | 1″ | 1 1/4″ | 1 1/4″ | 2 1/2″ | 2 1/2″ | |||||
| Circulation of Water Capacity | M3/h | 3 | 5 | 8 | 10 | 12 | 20 | 24 | ||||
| Pressure from Tap Water | kPa | 46 | 46 | 46 | 46 | 46 | 46 | 46 | ||||
| Noise | dBA | <=54 | <=56 | <=60 | <=60 | <=60 | <=62 | <=62 | ||||
| Mainframe Weight | kg | 100 | 180 | 340 | 360 | 380 | 680 | 760 | ||||
| Dimension(mm) | Length | 810 | 1110 | 1500 | 1500 | 1430 | 2170 | 2170 | ||||
| Width | 691 | 490 | 800 | 800 | 780 | 1065 | 1065 | |||||
| Height | 870 | 1260 | 1600 | 1600 | 1376 | 1890 | 1890 | |||||
| Running conditions: Ambient temperature DB(dry bulb) 20 ºC, WB(wet bulb)15ºC, Inlet water temp:15ºC, Outlet water temp:55ºC. | ||||||||||||
