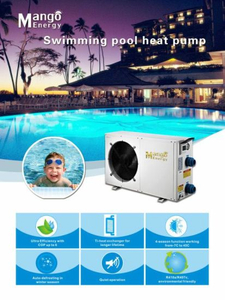

R410A Refrigerant and Rotary Compressor House Use SPA Pool Air to Water Heat Pump

Quantity:
  • MG-18
  • 4.8
  • Mango
  • Plywood
  • 1005*305*620
  • China
  • 8415812000
R410A refrigerant and rotary compressor house use SPA Pool air to water Heat Pump
Model
MG-13 MG-18 MG-27
Power supply V/Ph/Hz 220/1/50 220/1/50 220/1/50
Heating capacity kW 4.8 7.1 11
BTU 16378 24225 37532
Power input by heating kW 1.1 1.5 2.3
Cooling capacity kW 3.7 5.3 7.5
BTU 12624 18084 25590
Power input by cooling kW 1.4 1.9 2.8
Refrigerant
R410A R410A R410A
Required hot water flow rate m3/h 2 3 4.5
Water connection diameter mm 50 50 50
Noise dB(A) ≤48 ≤48 ≤48
Max. current A 9.5 13 7.2
Compressor Type Rotary Rotary Rotary
Fan Qty 1 1 1
Rated outlet water temp. °C 28 28 28
Max. water temp. °C 45 45 45
Operation temp. range °C -55 -55 -55
Net weight kg 58 67 84
Net size(L/W/H) mm 1005×305×620 1005×305×620 1115×425×715
Heating by Ambient temp.(DB/WB):20°C /15°C and Water temp.(in /out): 15°C/28°C;
Cooling by Ambient temp.(DB/WB):35°C /24°C and Water temp.in 28°C;
Above information just for your reference, Please subject to the nameplate on the unit
Refrigerant is optional
