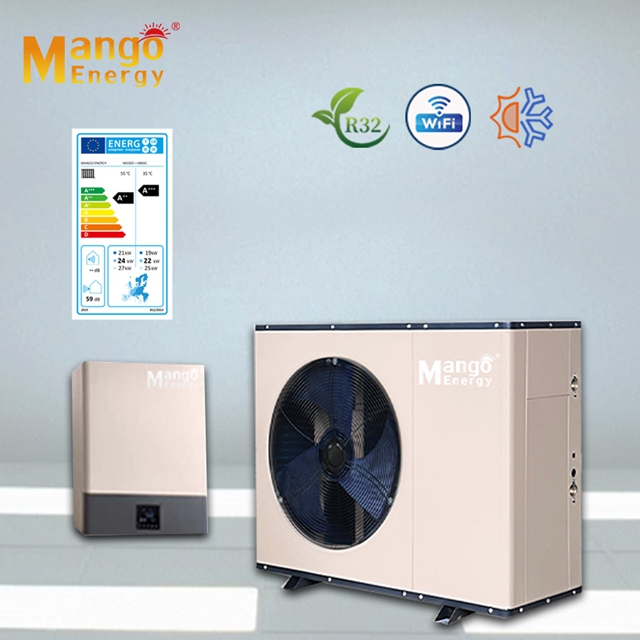

WIFI Available Mango Energy Full DC Inverter Split Heat Pump Air to Water 9kw Heating Capacity R32

Split air to water heat pump full dc inverter 9kw heating capacity with wifi connection. R32 refrigerant. MGSDC-030IIC. Champagne coating.
Availability:
Quantity:
  • MGSDC-030IIC
  • Mango
  • 8418619130
  • Mango Energy
  • CE, ISO9001, CB, UL, RoHS, SASO, CSA
  • Plywood
  • China
  • Indoor Unit:480*305*645mm Outdoor Unit:925*375*770mm
  • Villa, Hotel, Garage, Sauna, Apartment Household etc.
Product Description
Name
WIFI Available Full DC Inverter 9kw Heating Capacity Heat Pump
Function
Heating/Cooling/Hot Water
ERP
A+++
Material
Galvanized sheet
Package
Wooden



DC Inverter heat pump Advantages:

1.R32 Refrigerant pipe connection insures the system stability even in tough weather.

2.E-heater, diverter valve,water pump,and expansion tank can be included.

3.CE,TUV test report, ERP A+++.

4.WIFI Control Available.

5.Work down to -30 degree C.
Parameter
Model
MGSDC-030IIC
Power Supply
Indoor Unit
V/Hz/Ph
220-240/50/1, 380-415/50/3
Outdoor Unit
220-240/50/1
+7°C/35°CFloor heating
Heating capacity
kW
9
Power input
kW
2
COP

4.5
+2°C/35°C Floor heating
Heating capacity
kW
8.5
Power input
kW
2.18
COP

3.9
-7°C/35°C Floor heating
Heating capacity
kW
7.3
Power input
kW
2.47
COP

2.96
+7°C/45°C Radiators
Heating capacity
kW
9
Power input
kW
2.54
COP

3.54
 -7°C/45°C Radiators
Heating capacity
kW
7
Power input
kW
2.92
COP

2.4
+7°C/55°C Hot water
Heating capacity
kW
7.8
Power input
kW
2.48
COP

3.15
 -12°C/40°C Floor heating
Heating capacity
kW
6
Power input
kW
2.6
COP

2.3
+35°C/7°C Fan coil
Cooling Capacity
kW
7
Power Input
kW
2.6
COP

2.7
Net dimension (L*W*H)
Indoor Unit
mm
480*305*645
Outdoor Unit
mm
925*375*770

Features

A.Top SCOP
Panasonic/Toshiba/Sanyo Inverter Rotary compressor and ECO R32/R410 refrigerant for max heat capacity and less refrigerant, large volume of latent heat from the air via evaporator in coldest season.
B.Ultra frequency conversion technology
Based on the principle of proportional relationship between motor speed and input frequency of working power supply: n=60f(1-s)/p and changing motor speed by changing working power frequency of the motor, it adopts AC-DC-AC power conversion technology, relying on our powerful control system with PWM generation ability, integrate V/F, vector control (VC) and direct torque control (DTC) to achieve control method of variable frequency PID calculus, mainly drive variable frequency by way of PWM synthesis drive, fully integrate power, electronics, microcomputer control and other technologies.
C.Advanced Carel Operate System, ultra intelligent
Especially extraordinary heat dissipation circuit board design, longer service, over 3 times of other brand's, simple click and fully play the characteristics of DC inverter frequency conversion system to achieve marvellous performance.
D.Multi-speed mute fan motor
ROHS fan blades, ultra-low noise, durable & reliable, constant max air flow to satisfy heat supply.
E.Soft-start and soft-shutdown
Protecting both electrical system and all key parts, such a EEV, SANHUA 4-way valve, LG AC contactor & other World famous brand components ensure heat pump device 2-3 time longer service by
1) making output torque of the motor meeting the requirements of mechanical system for starting torque, ensuring smooth acceleration & smooth transition, and avoiding destructive torque impact;
2) achieving both starting current meeting the requirements of motor's bearing capacity, and the insulation damage or burnout caused when it starts.
3) reducing both voltage sag range and the content of high-order harmonics etc.
F.High-tech shock-absorption all copper construction piping
High-accurate completely automatic silver welding, easy maintenance.
G.High-density protective jacket for minimum heat lost
Aviation class insulation foam with outstanding sound absorption.
H.Classic European outlook forming
Fashion taste, never out of time.
I.Portable compact design
Saving room for installation & operation.
J.Fast heating and cooling speed
Before the indoor temperature reaches the set value, the Panasonic rotary compressor delivers high levels of efficiency, enabling the unit to operate at high frequency so that it can heat water or provide house heating/cooling at a faster speed.
